PRO COAX HORN
PRO COAX HORN

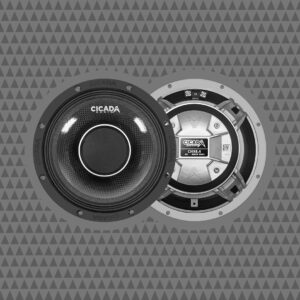

8″ Pro Coax Horn Speakers – 2Ω
8″ Pro Coax Horn Speakers – 2Ω
IMPORTANT:
REQUIRES A MINIMUM POWER OF 400W RMS PER SPEAKER. ANY LESS WILL VOID THE WARRANTY.
RECOMMENDED POWER AMPLIFIERS: FLX1000.4 (if bridged with 4Ω drivers), FLX1400.4, FLX1400.4P, FLX2000.4.
FEATURES:
- Nanofram™ Horn Cover
- Cicada All-Weather Design: Exclusive design for reliable protection against rain and harsh conditions.
- Rain or Shine™ Performance: All-weather performance design for optimal sound in any environment.
- Available in 4Ω or 2Ω Versions
- Aluminum Tweeter Diaphragm Material: Provides brighter and more efficient sound.
- 1.75″ OFC Copper Wire Tweeter Voice Coils: Efficient design that produces great sound while generating less heat.
- Repairable Tweeter Voice Coils (CHT175): Allows for easy repair of the voice coils if needed.
- External 12dB Crossover: Includes an optional -3/-6 dB tweeter resistor attenuator for enhanced control.
- Carbon Matrix Composite™ (CMC™) Cone: Lightweight, rigid, and high-temperature resistant for superior performance.
- Black Coat™ 2.5-inch High Conductivity, Low Resistance OFC Copper Wire Mid-Bass Voice Coil: Ensures extreme temperature performance with maximum efficiency.
- N35SH Neodymium Magnet: Provides powerful and reliable performance.
- Die-Cast Aluminum Custom-Tooled Basket with Vortex Flow Venting™: Maximizes airflow and cooling.
- Warranty: 2 years.
SPECIFICATIONS:
- Type: 2Ω 8-inch PRO Coaxial Horn Driver
- Power Handling: 400W RMS / 800W MAX
- Voice Coils:
- 2.5-inch (64mm) Mid-Bass
- 1.75-inch (44mm) Tweeter
- Tweeter Dome: Aluminum
- Crossover: Custom-Tooled, Vented, Encased 12dB External Crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Cone Material: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 92dB (1W / 1M)
- Frequency Response: 46Hz – 20kHz ±3dB
- Mounting Depth: 3.3-inch (84mm)
- Mounting Diameter: 7.2-inch (182mm)

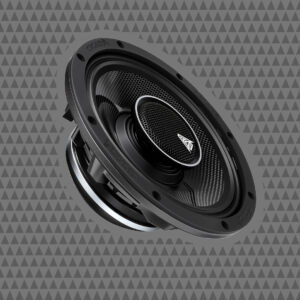

8″ Pro Coax Horn Speakers – 4Ω
8″ Pro Coax Horn Speakers – 4Ω
IMPORTANT:
REQUIRES A MINIMUM POWER OF 400W RMS PER SPEAKER. ANY LESS WILL VOID THE WARRANTY.
RECOMMENDED POWER AMPLIFIERS: FLX1000.4 (if bridged with 4Ω drivers), FLX1400.4, FLX1400.4P, FLX2000.4.
FEATURES:
- Nanofram™ Horn Cover
- Cicada All-Weather Design: Exclusive design for reliable protection against rain and harsh conditions.
- Rain or Shine™ Performance: All-weather performance design for optimal sound in any environment.
- Available in 4Ω or 2Ω Versions
- Aluminum Tweeter Diaphragm Material: Provides brighter and more efficient sound.
- 1.75″ OFC Copper Wire Tweeter Voice Coils: Efficient design that produces great sound while generating less heat.
- Repairable Tweeter Voice Coils (CHT175): Allows for easy repair of the voice coils if needed.
- External 12dB Crossover: Includes an optional -3/-6 dB tweeter resistor attenuator for enhanced control.
- Carbon Matrix Composite™ (CMC™) Cone: Lightweight, rigid, and high-temperature resistant for superior performance.
- Black Coat™ 2.5-inch High Conductivity, Low Resistance OFC Copper Wire Mid-Bass Voice Coil: Ensures extreme temperature performance with maximum efficiency.
- N35SH Neodymium Magnet: Provides powerful and reliable performance.
- Die-Cast Aluminum Custom-Tooled Basket with Vortex Flow Venting™: Maximizes airflow and cooling.
- Warranty: 2 years.
SPECIFICATIONS:
- Type: 4Ω 8-inch PRO Coaxial Horn Driver
- Power Handling: 400W RMS / 800W MAX
- Voice Coils:
- 2.5-inch (64mm) Mid-Bass
- 1.75-inch (44mm) Tweeter
- Tweeter Dome: Aluminum
- Crossover: Custom-Tooled, Vented, Encased 12dB External Crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Cone Material: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 92dB (1W / 1M)
- Frequency Response: 46Hz – 20kHz ±3dB
- Mounting Depth: 3.3-inch (84mm)
- Mounting Diameter: 7.2-inch (182mm)

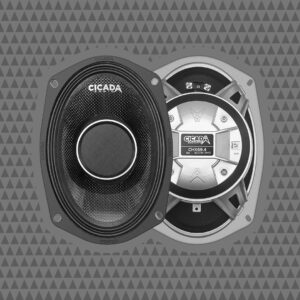

6×9″ Pro Coax Horn Speakers – 2Ω
6×9″ Pro Coax Horn Speakers – 2Ω
IMPORTANT:
REQUIRES A MINIMUM POWER OF 400W RMS PER SPEAKER. ANY LESS WILL VOID THE WARRANTY.
RECOMMENDED POWER AMPLIFIERS: FLX1000.4 (if bridged with 4Ω drivers), FLX1400.4, FLX1400.4P, FLX2000.4.
FEATURES:
- Nanofram™ Horn Cover
- Cicada All-Weather Design: Exclusive design for reliable protection against rain and harsh conditions.
- Rain or Shine™ Performance: All-weather performance design for optimal sound in any environment.
- Available in 4Ω or 2Ω Versions
- Aluminum Tweeter Diaphragm: Delivers brighter, more efficient sound.
- 1.75″ OFC Copper Wire Tweeter Voice Coils: Efficient design that produces great sound while generating less heat.
- Repairable Tweeter Voice Coils (CHT175): Allows for easy repair of the voice coils if needed.
- External 12dB Crossover: Includes an optional -3/-6 dB tweeter resistor attenuator for enhanced control.
- Carbon Matrix Composite™ (CMC™) Cone: Lightweight, rigid, and high-temperature resistant for superior performance.
- Black Coat™ 2.5-inch High Conductivity OFC Copper Wire Mid-Bass Voice Coil: Ensures extreme thermal performance with low resistance for maximum efficiency.
- N35SH Neodymium Magnet: Provides powerful and reliable performance.
- Die-Cast Aluminum Custom-Tooled Basket with Vortex Flow Venting™: Maximizes airflow and cooling.
- Warranty: 2 years
SPECIFICATIONS:
- Type: 2Ω 6X9-inch PRO Coaxial Horn Driver
- Power Handling: 400W RMS / 800W MAX
- Voice Coils:
- 2.5-inch (64mm) Mid-Bass
- 1.75-inch (44mm) Tweeter
- High Temperature Design
- Tweeter Dome: Aluminum
- Crossover: Custom-Tooled, Vented, Encased 12dB External Crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Cone Material: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 92dB (1W / 1M)
- Frequency Response: 46Hz – 20kHz ±3dB
- Mounting Depth: 3.75-inch (96mm)
- Mounting Diameter: 5.7-inch (145mm) x 8.5-inch (216mm)
6×9″ Pro Coax Horn Speakers – 4Ω
6×9″ Pro Coax Horn Speakers – 4Ω
IMPORTANT:
REQUIRES A MINIMUM POWER OF 400W RMS PER SPEAKER. ANY LESS WILL VOID THE WARRANTY.
RECOMMENDED POWER AMPLIFIERS: FLX1000.4 (if bridged with 4Ω drivers), FLX1400.4, FLX1400.4P, FLX2000.4.
FEATURES:
- Nanofram™ Horn Cover
- Cicada All-Weather Design: Exclusive design for reliable protection against rain and harsh conditions.
- Rain or Shine™ Performance: All-weather performance design for optimal sound in any environment.
- Available in 4Ω or 2Ω Versions
- Aluminum Tweeter Diaphragm: Delivers brighter, more efficient sound.
- 1.75″ OFC Copper Wire Tweeter Voice Coils: Efficient design that produces great sound while generating less heat.
- Repairable Tweeter Voice Coils (CHT175): Allows for easy repair of the voice coils if needed.
- External 12dB Crossover: Includes an optional -3/-6 dB tweeter resistor attenuator for enhanced control.
- Carbon Matrix Composite™ (CMC™) Cone: Lightweight, rigid, and high-temperature resistant for superior performance.
- Black Coat™ 2.5-inch High Conductivity OFC Copper Wire Mid-Bass Voice Coil: Ensures extreme thermal performance with low resistance for maximum efficiency.
- N35SH Neodymium Magnet: Provides powerful and reliable performance.
- Die-Cast Aluminum Custom-Tooled Basket with Vortex Flow Venting™: Maximizes airflow and cooling.
- Warranty: 2 years.
SPECIFICATIONS:
- Type: 4Ω 6X9-inch PRO Coaxial Horn Driver
- Power Handling: 400W RMS / 800W MAX
- Voice Coils:
- 2.5-inch (64mm) Mid-Bass
- 1.75-inch (44mm) Tweeter
- High Temperature Design
- Tweeter Dome: Aluminum
- Crossover: Custom-Tooled, Vented, Encased 12dB External Crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Cone Material: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 92dB (1W / 1M)
- Frequency Response: 46Hz – 20kHz ±3dB
- Mounting Depth: 3.75-inch (96mm)
- Mounting Diameter: 5.7-inch (145mm) x 8.5-inch (216mm)
Pro Coax Horn Speakers – 2Ω
Pro Coax Horn Speakers – 2Ω
FEATURES:
- Designed for 2014+ H-D® factory designed locations
- Nanofram™ Horn Cover
- Exclusive Cicada All-Weather Design for protection from rain
- N35SHSH Neo magnet
- Water proofing, UV protected
- External 12dB crossover with optional -3/-6 tweeter resistor pack
- Available in 4- or 2-Ω versions
- Aluminum tweeter diaphragm material
- Brighter sound
- More efficient
- Carbon Matrix Composite™ (CMC™) cone
- Lightweight / rigid / high temp
- Maximized efficiency / super strong
- Die cast Aluminum custom tooled basket
- Warranty: 2 years
Specifications
- 6.5” PRO coaxial horn driver
- Power handling: 300W RMS/600W MAX
- Voice Coils: 2.0”/51mm mid-bass & 1.4”/35.56mm Tweeter
- High temperature Design
- Cone: Carbon Matrix Composite™
- Tweeter Dome: Aluminum
- Crossover: 12dB external custom tooled, vented, encased crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor pack
- Magnet: Neodymium
- Sensitivity: 92dB
- response 70hz-20Khz +/- 4dB
- Mounting Depth: 2.64”/67mm
- Mounting Diameter: 5.67”/144mm

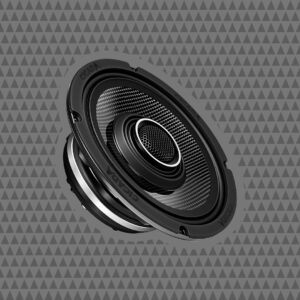

Pro Coax Horn Speakers – 4Ω
Pro Coax Horn Speakers – 4Ω
FEATURES:
- Designed for 2014+ H-D® factory designed locations
- Nanofram™ Horn Cover
- Exclusive Cicada All-Weather Design for protection from rain
- N35SHSH Neo magnet
- Water proofing, UV protected
- External 12dB crossover with optional -3/-6 tweeter resistor pack
- Available in 4- or 2-Ω versions
- Aluminum tweeter diaphragm material
- Brighter sound
- More efficient
- Carbon Matrix Composite™ (CMC™) cone
- Lightweight / rigid / high temp
- Maximized efficiency / super strong
- Die cast Aluminum custom tooled basket
- Warranty: 2 years
Specifications
- 6.5” PRO coaxial horn driver
- Power handling: 300W RMS/600W MAX
- Voice Coils: 2.0”/51mm mid-bass & 1.4”/35.56mm Tweeter
- High temperature Design
- Cone: Carbon Matrix Composite™
- Tweeter Dome: Aluminum
- Crossover: 12dB external custom tooled, vented, encased crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor pack
- Magnet: Neodymium
- Sensitivity: 92dB
- response 70hz-20Khz +/- 4dB
- Mounting Depth: 2.64”/67mm
- Mounting Diameter: 5.67”/144mm
5.25″ Pro Coax Horn Speakers – 2Ω
FEATURES:
- Nanofram™ Horn Cover
- Exclusive Cicada All-Weather Design for protection from rain
- Rain or Shine™ all weather performance design
- Available in 4 or 2Ω versions
- Aluminum tweeter diaphragm material
- Brighter sound
- More efficient
- 1″ OFC copper wire tweeter voice coils offer great sound while generating less heat
- Carbon Matrix Composite™ (CMC™) cone
- Lightweight / rigid / high temp
- Maximized efficiency / super strong
- Black coat™ 1.75” high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
- N35SH Neodymium magnet
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Warranty: 2 years
SPECIFICATIONS:
- 2Ω -5.25” PRO coaxial horn driver
- Power handling: 150W RMS/300W MAX
- Voice Coil: 1.5-inch/38.1mm Mid-bass & 1.00-inch/25.4mm Tweeter
- High temperature design
- Tweeter Dome: Aluminum
- Crossover: 12dB external custom tooled, vented, encased crossover
- Cone: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 91dB, 1W / 1M
- response 90Hz – 20kHz +/- 5dB
- Mounting Depth: 2.75-inch/69.85mm
- Mounting Diameter: 4.66-inch/118.5mm
5.25″ Pro Coax Horn Speakers – 4Ω
FEATURES:
- Nanofram™ Horn Cover
- Exclusive Cicada All-Weather Design for protection from rain
- Rain or Shine™ all weather performance design
- Available in 4Ω or 2Ω versions
- Aluminum tweeter diaphragm material
- Brighter sound
- More efficient
- 1″ OFC copper wire tweeter voice coils offer great sound while generating less heat
- Carbon Matrix Composite™ (CMC™) cone
- Lightweight / rigid / high temp
- Maximized efficiency / super strong
- Black coat™ 1.75” high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
- N35SH Neodymium magnet
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Warranty: 2 years
SPECIFICATIONS:
- 4Ω -5.25” PRO coaxial horn driver
- Power handling: 150W RMS/300W MAX
- Voice Coil: 1.5-inch/38.1mm Mid-bass & 1.00-inch/25.4mm Tweeter
- High temperature design
- Tweeter Dome: Aluminum
- Crossover: 12dB external custom tooled, vented, encased crossover
- Cone: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 91dB, 1W / 1M
- response 90Hz – 20kHz +/- 5dB
- Mounting Depth: 2.75-inch/69.85mm
- Mounting Diameter: 4.66-inch/118.5mm
