COAX HORN
COAX HORN
-

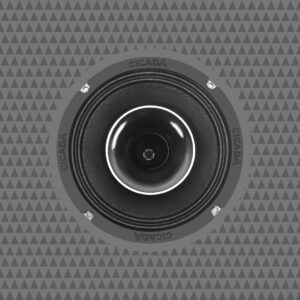

CH65.4v2 6.5″ Coax Horn 4Ω
$549.99
CH65.4v2 6.5″ Coax Horn 4Ω
$549.99
FEATURES:
- Designed for 2014+ H-D® factory designed locations
- Removable threaded horn flange for easy color modification
- Aluminum tweeter diaphragm material
- Brighter sound
- More efficient
- External 12dB crossover with optional tweeter attenuator resistor
- OFC copper wire tweeter voice coils offer great sound while generating less heat
- Water resistant treated paper cone
- Lightweight / rigid
- Maximized efficiency / super light
- N35SH Neodymium magnet
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Warranty: 2 years
SPECIFICATIONS
- 250wRMS/500w MAX Power Handling
- 2.0” 4 Ohm – High Temp Voice Coil (Black Coat™) Voice Coil Mid-Bass
- Shortening Ring for the Ultimate in speaker control
- 1.4” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
- Frequency Response: 75Hz -20Khz+/-5dB
- High Sensitivity:4dB / 99dB 1W/1M Average (1W/1M – 2.83V)
- Can be Bi-Amped (Horn Tweeters can be run on their own dedicated channels)
- Mounting Depth: 3.0” / 76.2mm
- Mounting Diameter: 5.7” / 145.5mm
-
CH65.2v2 6.5″ Coax Horn 2Ω
$549.99
CH65.2v2 6.5″ Coax Horn 2Ω
$549.99
FEATURES:
- Designed for 2014+ H-D® factory designed locations
- Removable threaded horn flange for easy color modification
- Aluminum tweeter diaphragm material
- Brighter sound
- More efficient
- External 12dB crossover with optional tweeter attenuator resistor
- OFC copper wire tweeter voice coils offer great sound while generating less heat
- Water resistant treated paper cone
- Lightweight / rigid
- Maximized efficiency / super light
- N35SH Neodymium magnet
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Warranty: 2 years
SPECIFICATIONS
- 250wRMS/500w MAX Power Handling
- 2.0” 2 Ohm – High Temp Voice Coil (Black Coat™) Voice Coil Mid-Bass
- Shortening Ring for the Ultimate in speaker control
- 1.4” Aluminum Diaphragm High-Temp Voice Coil for Tweeter
- Frequency Response: 75Hz -20Khz+/-5dB
- High Sensitivity:4dB / 99dB 1W/1M Average (1W/1M – 2.83V)
- Can be Bi-Amped (Horn Tweeters can be run on their own dedicated channels)
- Mounting Depth: 3.0” / 76.2mm
- Mounting Diameter: 5.7” / 145.5mm
-
CH8.4W 8″ COAXIAL HORN 4Ω Water Resistant
$649.99
FEATURES:
- Nanofram™ Horn Cover
- Exclusive Cicada All-Weather Design for protection from rain
- Removable threaded horn ring for easy modification
- Rain or Shine™ all weather performance design
- Available in 4- or 2-Ω versions
- Aluminum tweeter diaphragm material
- Brighter sound
- More efficient
- External 12dB crossover with optional -3/-6 tweeter attenuator
- 4-inch OFC copper wire tweeter voice coils offer great sound while generating less heat
- Water resistant treated paper cone
- Lightweight / rigid / high temp
- Maximized efficiency / super strong
- Black Coat™ 2-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
- N35SH Neodymium magnet
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Warranty: 2 years
SPECIFICATIONS:
- 4Ω – 8.0-inch coaxial horn driver
- Power handling: 250W RMS/500W MAX
- Voice Coils: 2.5-inch/64mm mid-bass & 1.4-inch/36mm Tweeter
- Tweeter Dome: Aluminum
- Crossover: 12dB external custom tooled, vented, encased crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Cone: water resistant treated paper cone
- Magnet: Neodymium
- Sensitivity: 95dB, 1W / 1M
- Frequency response 75Hz – 20kHz +/- 3dB
- Mounting Depth: 3.6-inch/91mm
- Mounting Diameter: 7.1-inch/180mm
-
CH8.2W 8″ COAXIAL HORN 2Ω Water Resistant
$649.99
FEATURES:
- Nanofram™ Horn Cover
- Exclusive Cicada All-Weather Design for protection from rain
- Removable threaded horn ring for easy modification
- Rain or Shine™ all weather performance design
- Available in 4- or 2-Ω versions
- Aluminum tweeter diaphragm material
- Brighter sound
- More efficient
- External 12dB crossover with optional -3/-6 tweeter attenuator
- 4-inch OFC copper wire tweeter voice coils offer great sound while generating less heat
- Water resistant treated paper cone
- Lightweight / rigid / high temp
- Maximized efficiency / super strong
- Black Coat™ 2-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
- N35SH Neodymium magnet
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Warranty: 2 years
SPECIFICATIONS:
- 2Ω – 8.0-inch coaxial horn driver
- Power handling: 250W RMS/500W MAX
- Voice Coils: 2.5-inch/64mm mid-bass & 1.4-inch/36mm Tweeter
- Tweeter Dome: Aluminum
- Crossover: 12dB external custom tooled, vented, encased crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Cone: water resistant treated paper cone
- Magnet: Neodymium
- Sensitivity: 95dB, 1W / 1M
- Frequency response 75Hz – 20kHz +/- 3dB
- Mounting Depth: 3.6-inch/91mm
- Mounting Diameter: 7.1-inch/180mm
-
CH69.4W 6×9″ Coaxial Horn 4Ω Water Resistant
$649.99
FEATURES:
- Nanofram™ Horn Cover
- Exclusive Cicada All-Weather Design for protection from rain
- Removable threaded horn ring for easy modification
- Rain or Shine™ all weather performance design
- Available in 4- or 2-Ω versions
- Aluminum tweeter diaphragm material
- Brighter sound
- More efficient
- External 12dB crossover with optional -3/-6 tweeter attenuator
- 4-inch OFC copper wire tweeter voice coils offer great sound while generating less heat
- Water resistant treated paper cone
- Lightweight / rigid
- Maximized efficiency / super strong
- Black Coat™ 2-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
- N35SH Neodymium magnet
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Warranty: 2 years
SPECIFICATIONS:
- 4Ω – 6X9-inch coaxial horn driver
- Power handling: 250W RMS/500W MAX
- Voice Coil: 2.5-inch/64mm Mid-bass & 1.4-inch/36mm Tweeter
- Tweeter Dome: Aluminum
- Crossover: 12dB external custom tooled, vented, encased crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Cone: water resistant treated paper cone
- Magnet: Neodymium
- Sensitivity: 95dB
- Frequency response 75Hz – 20kHz +/- 3dB
- Mounting Depth: 3.7-inch/93mm
- Mounting Diameter: 6.6-inch/155mm X 9.3-inch/226mm
-
CH69.2W 6×9″ Coaxial Horn 2Ω Water Resistant
$649.99
FEATURES:
- Nanofram™ Horn Cover
- Exclusive Cicada All-Weather Design for protection from rain
- Removable threaded horn ring for easy modification
- Rain or Shine™ all weather performance design
- Available in 4- or 2-Ω versions
- Aluminum tweeter diaphragm material
- Brighter sound
- More efficient
- External 12dB crossover with optional -3/-6 tweeter attenuator
- 4-inch OFC copper wire tweeter voice coils offer great sound while generating less heat
- Water resistant treated paper cone
- Lightweight / rigid
- Maximized efficiency / super strong
- Black Coat™ 2-inch high conductivity, low resistance OFC copper wire mid-bass voice coil ensures extreme temperature thermal performance
- N35SH Neodymium magnet
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Warranty: 2 years
SPECIFICATIONS:
- 2Ω – 6X9-inch coaxial horn driver
- Power handling: 250W RMS/500W MAX
- Voice Coil: 2.5-inch/64mm Mid-bass & 1.4-inch/36mm Tweeter
- Tweeter Dome: Aluminum
- Crossover: 12dB external custom tooled, vented, encased crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Cone: water resistant treated paper cone
- Magnet: Neodymium
- Sensitivity: 95dB
- Frequency response 75Hz – 20kHz +/- 3dB
- Mounting Depth: 3.7-inch/93mm
- Mounting Diameter: 6.6-inch/155mm X 9.3-inch/226mm
