ENGINEERED TO TAKE THE HEAT

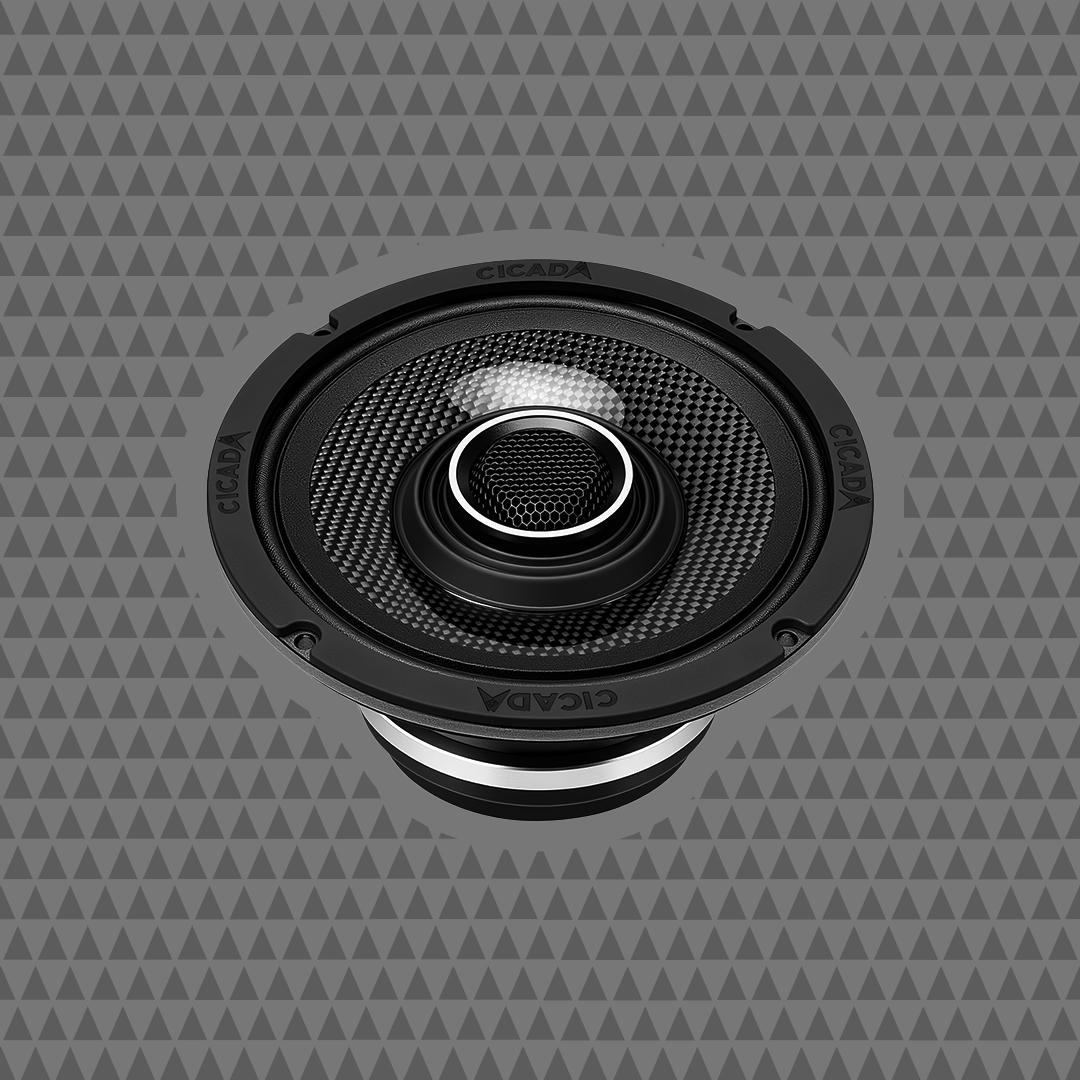

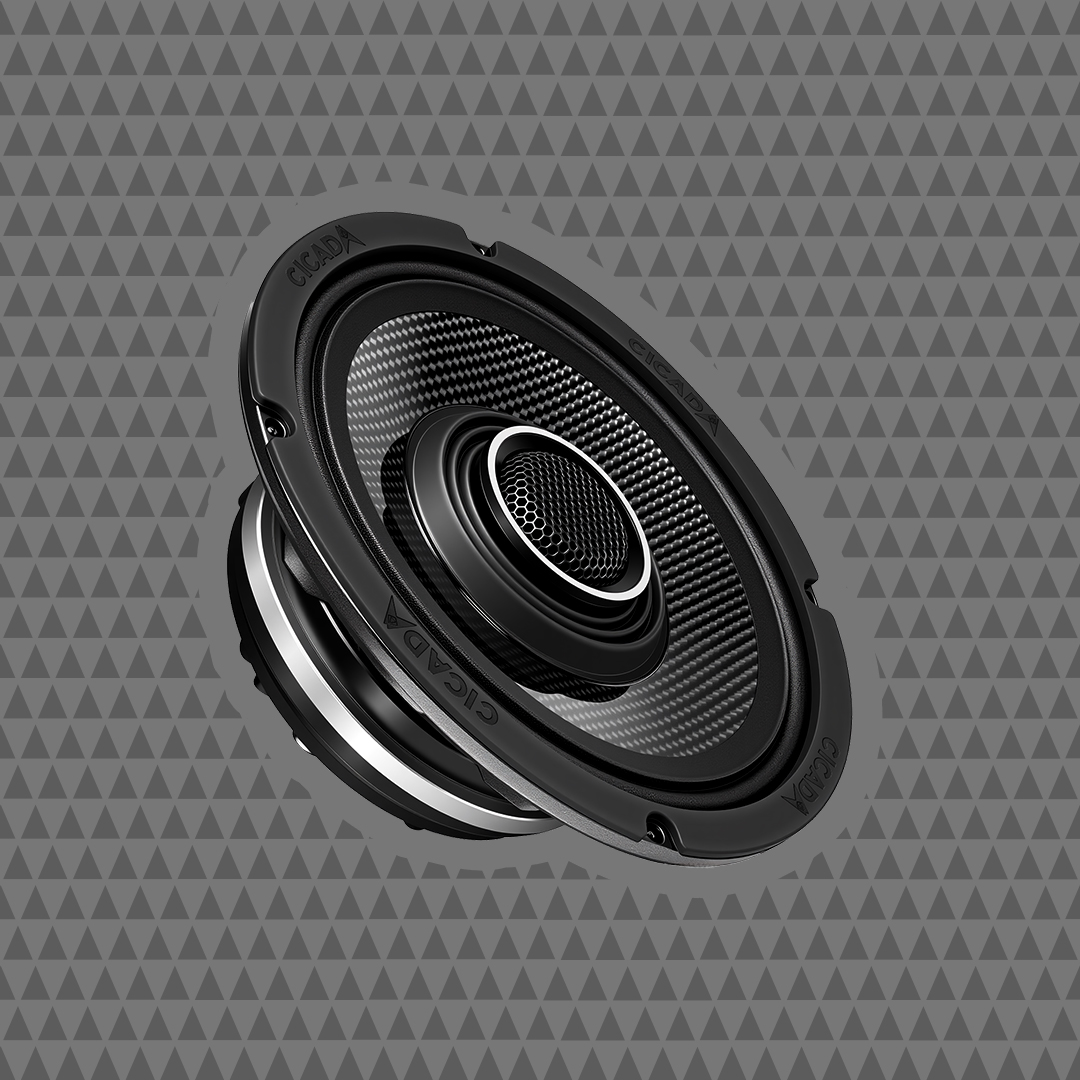

- High-temp resistant Carbon Matrix Composite™ (CMC™) cone that’s lightweight to move fast but strong enough, no matter how loud you go
- Advanced Voice Coil design featuring a lightweight TIL composite former, flat wound copper wire, and Black Coat™ high-temp thermoset resin
- Custom-tooled diecast aluminum basket with Vortex Flow Venting™ to keep the voice coil cool, even when you push your speakers to the max
WHERE NOISE ENDS AND THE MUSIC BEGINS / [WIN THE WAR ON ROAD NOISE]

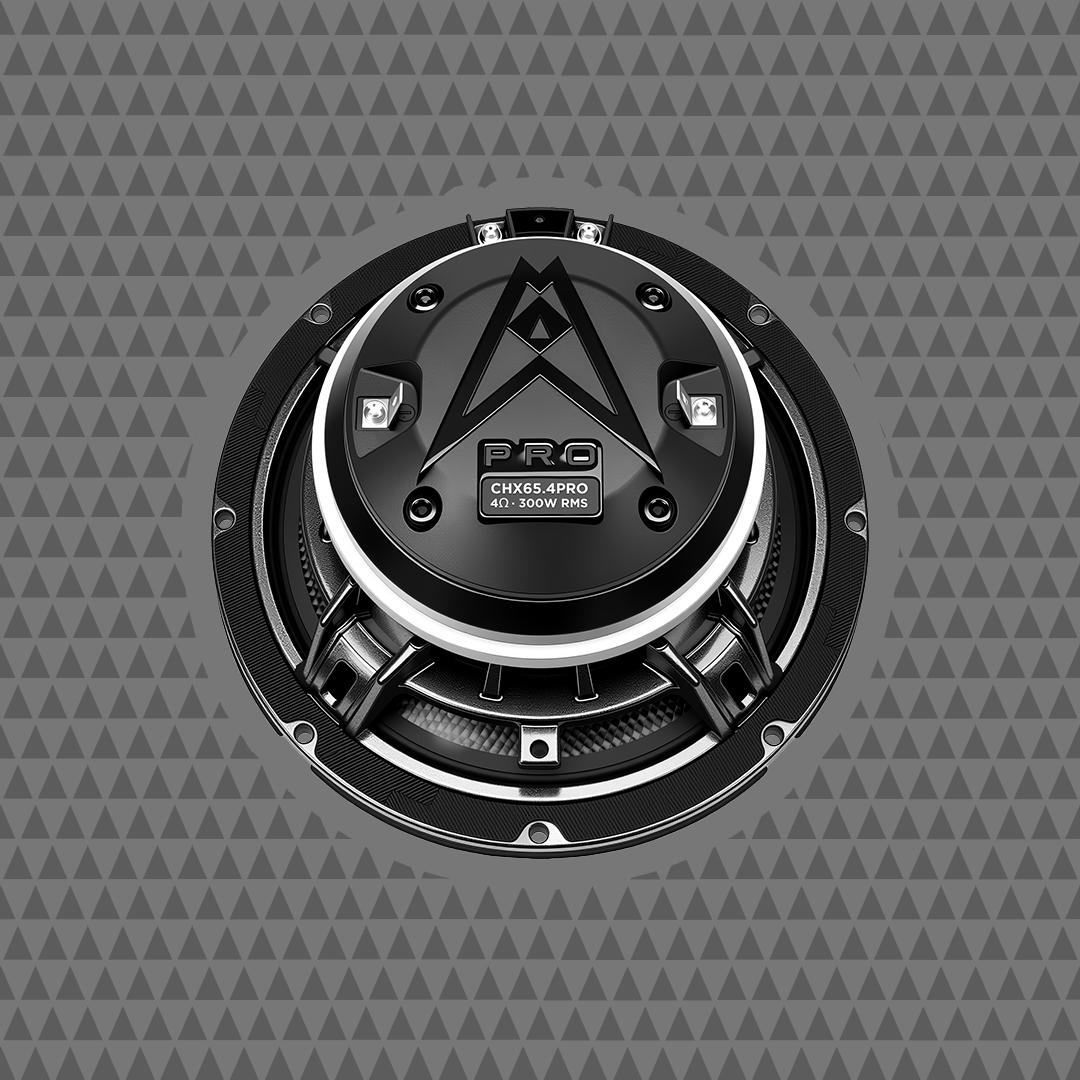

- N45SH Neodymium magnet motors deliver massive power in a compact package
- Lightweight, low-profile cloth surround that reacts faster, delivers higher SPL
- Aluminum tweeter dome diaphragm that completes your tonal balance
INSTALLATION IS SO DAMN EASY
- Designed to fit all 2014 and newer H-D® factory designed locations

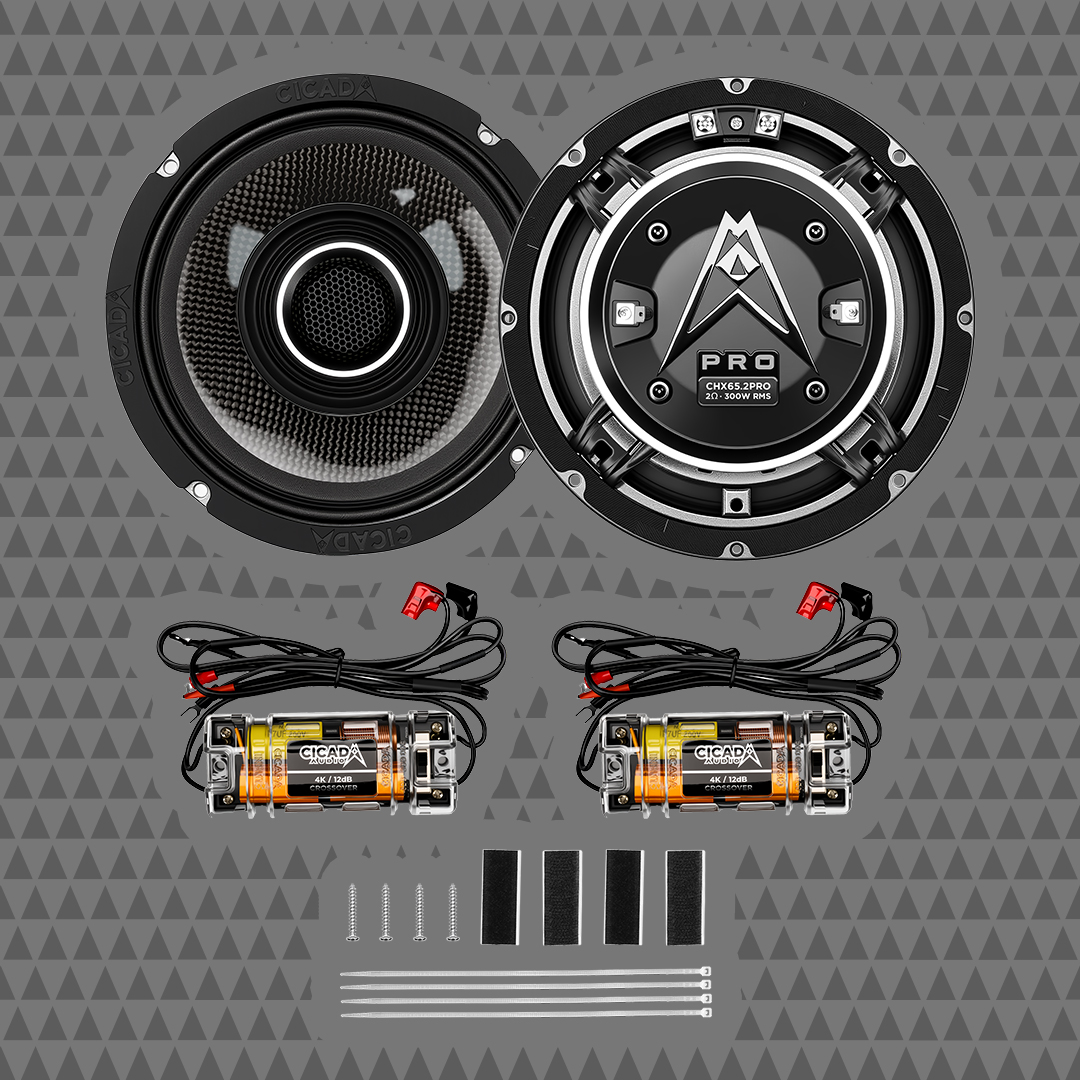

- Custom tooled, vented, encased external 12dB crossover with optional -3/-6 dB tweeter attenuator
- Removable threaded horn flange for easy modification
TOUGHER THAN THE ROAD
- Cicada Audio’s exclusive Nanofram™ horn cover delivers maximum protection from rain without sacrificing clarity or output
- Rain or Shine Pro™ all-weather design offers UV and moisture resistance for durable performance in direct sun, rain, or high-humidity environments
- Designed to last, in the USA
- Three (3) year warranty, to show we mean it
POWER HANDLING & IMPEDANCE
Nominal Impedance: 4 Ω
Power Handling: 300 W RMS / 600 W MAX
AUDIO PERFORMANCE
Frequency Response: 75 Hz – 20 kHz +/- 3 dB
Sensitivity: 92 dB, 1W / 1M
Cone Material: Carbon Matrix Composite™ (CMC™)
Tweeter Dome Material: Aluminum
CROSSOVER & TUNING
Crossover Frequency: 12 dB @ 4 kHz
Tweeter Attenuation Options: –3 dB / –6 dB (via Heatsink Encased Resistor)
Mid-Bass Voice Coil Diameter: 2.0 inch (51 mm)
Tweeter Voice Coil Diameter: 1.75 inch (44 mm)
MOTOR & STRUCTURE
Magnet Material: High-Grade Neodymium (N45SH)
Basket Material: Custom Tooled Diecast Aluminum
PHYSICAL DIMENSIONS

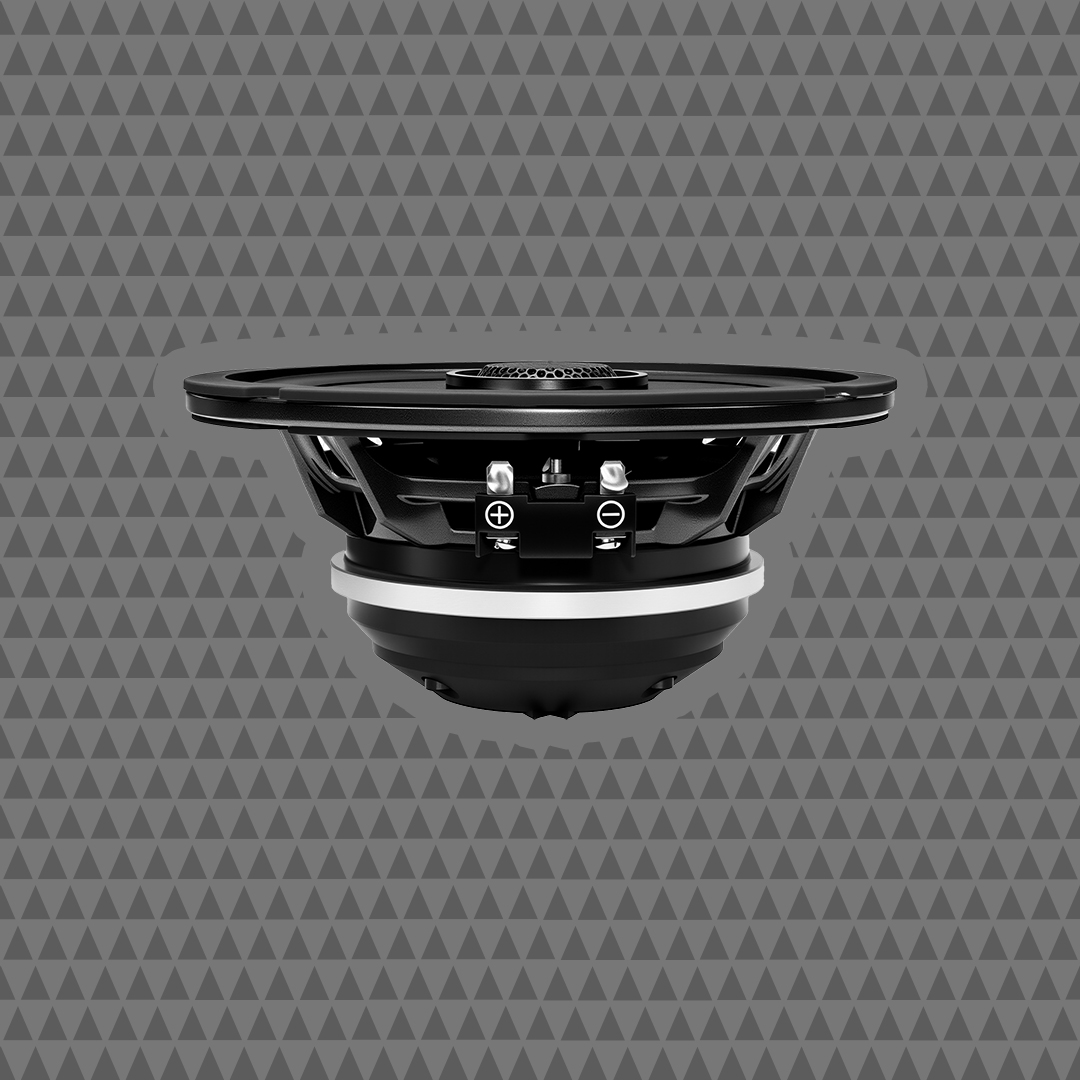

Mounting Depth: 2.6 inch (67 mm)
Mounting Diameter: 5.75 inch (145.4 mm)
