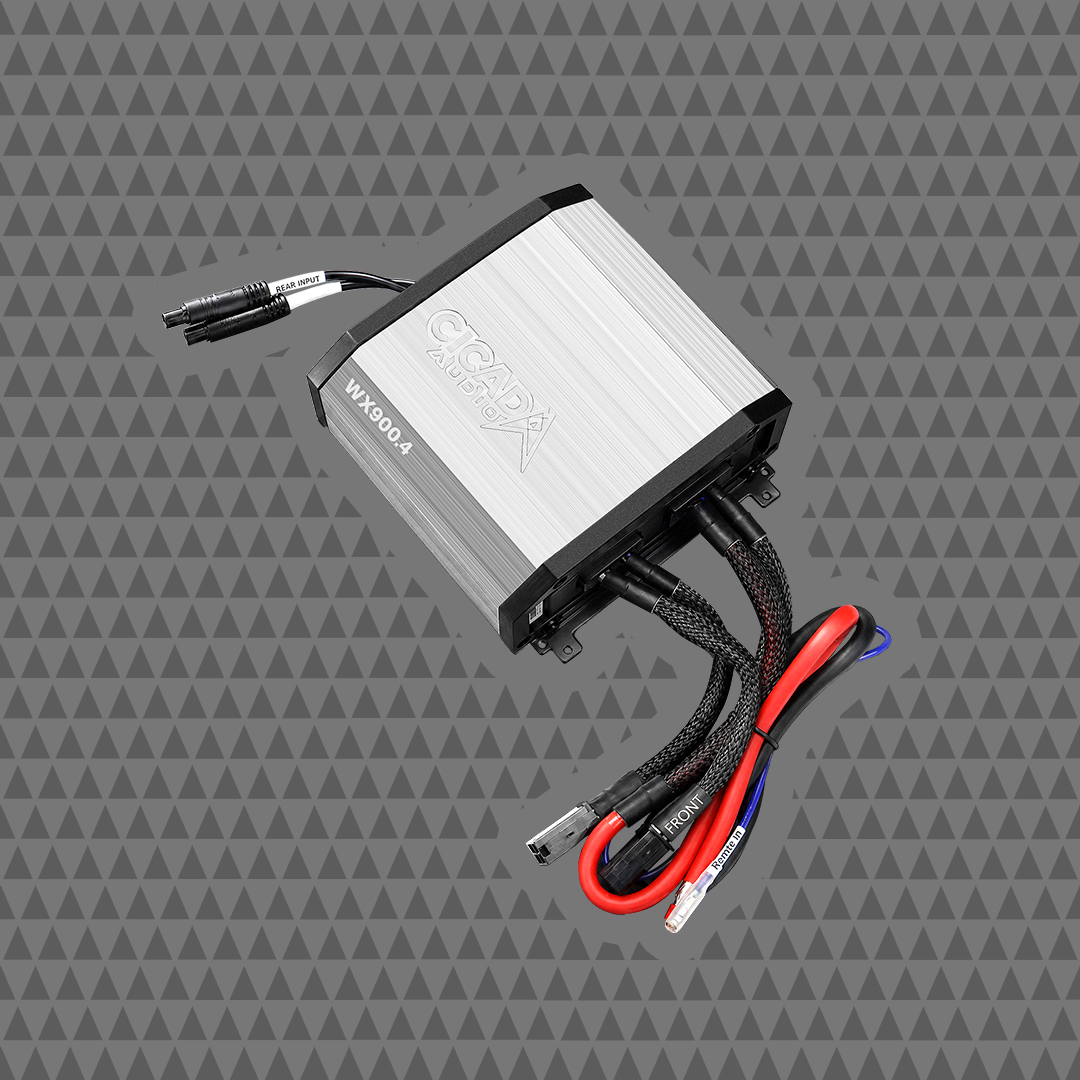

Weather-Resistant 4 Channel 900 W Full-Range Class D Amplifier
Compact, powerful, and rugged or element ready or built for the ride
SMALL SIZE, BIG SOUND
- Compact and engineered to deliver maximum power without compromise
- 900 W of high-fidelity power in a chassis that fits in your fairing
- Class D IR-based chipset offers latest in digital technology

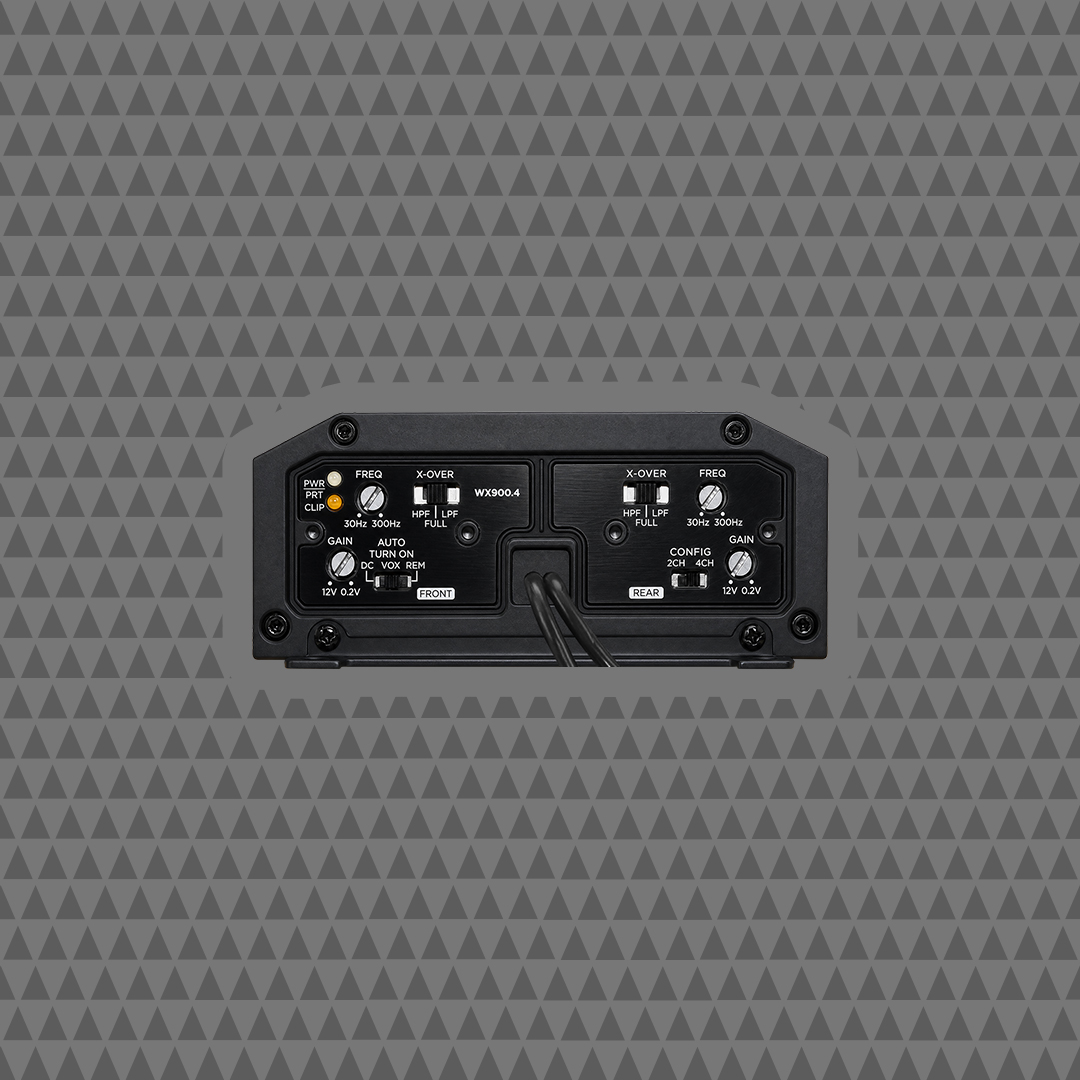

CONTROL LIKE A PRO
- 2 / 4 channel input switch control
- Fully bridgeable into 2 channels @ 4 Ω
- LPF / FULL / HPF crossovers with 12 dB per octave slopes
- Sensitivity adjustment from 12 V – 0.2 V
- Clipping and Status LED indicators
INSTALLATION IS SO DAMN EASY
- Engineered for a secure, factory fit on Cicada Audio® amplifier racks (racks sold separately)

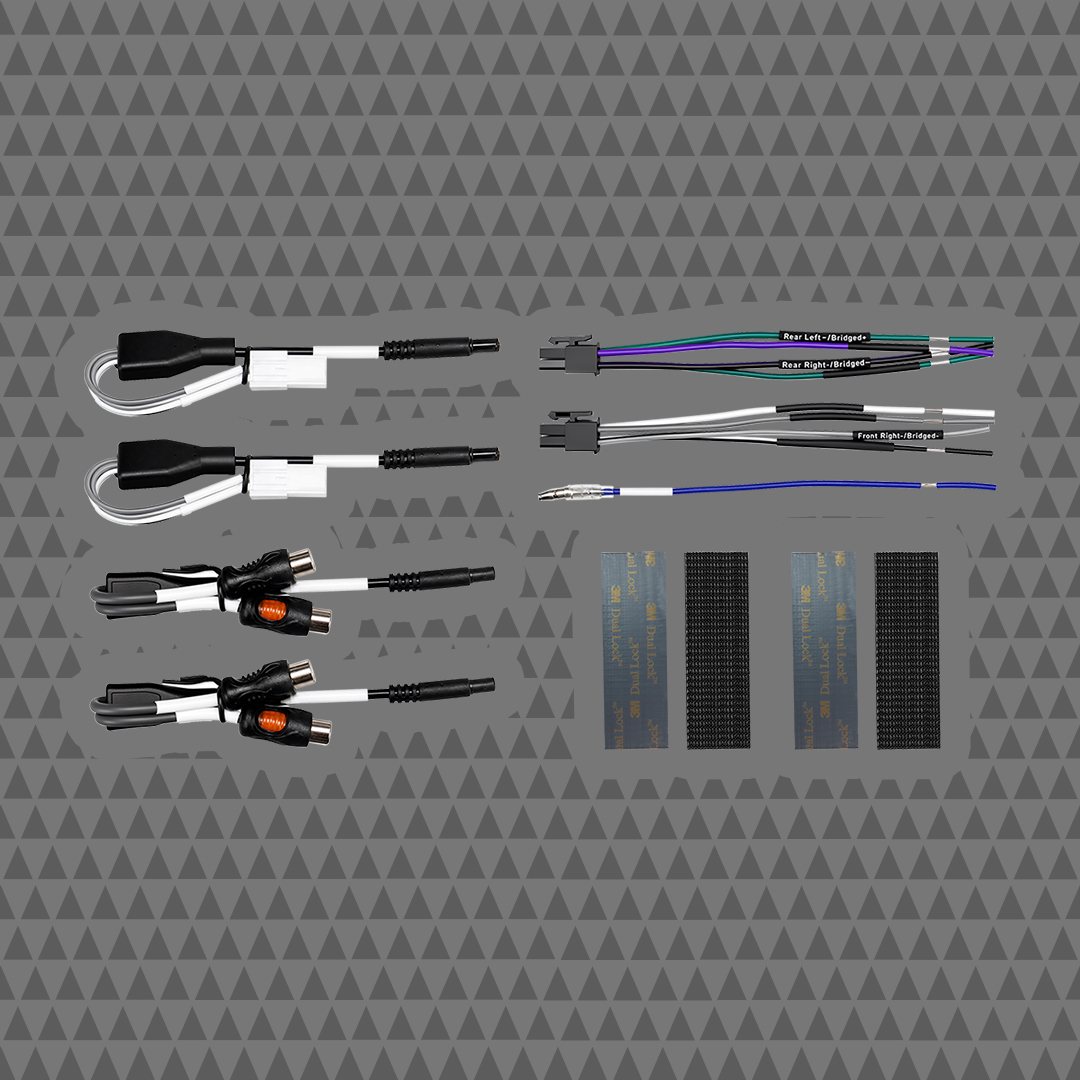

- Included mounting brackets provide multiple installation orientations for maximum flexibility
- Micro DIN inputs for flexible hookup via RCA or H-D® custom termination

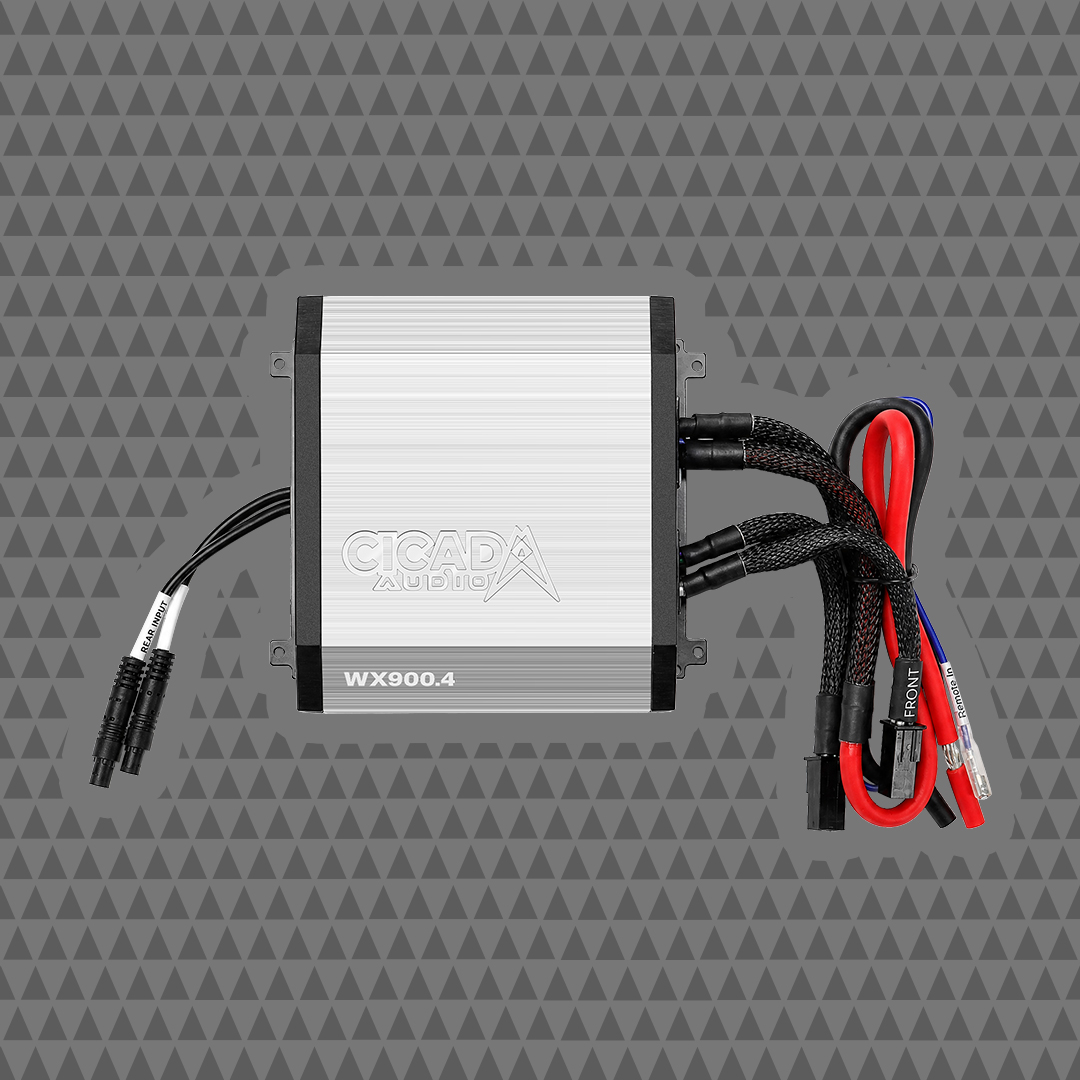

- 12-inch molded and over-braided 8 AWG power and ground leads provide a fully sealed, weather-resistant power connection
- 6-inch molded and over-braided 16 AWG speaker wire leads provide a fully sealed, weather-resistant output and are terminated with a female Molex® connector
TOUGHER THAN THE ROAD
- Rugged IPX6 weatherproof design withstands extreme water exposure
- Water-repellent materials with over-molded strain relief deliver long-lasting durability
- Protective conformal coating applied to the circuit board guards against the elements

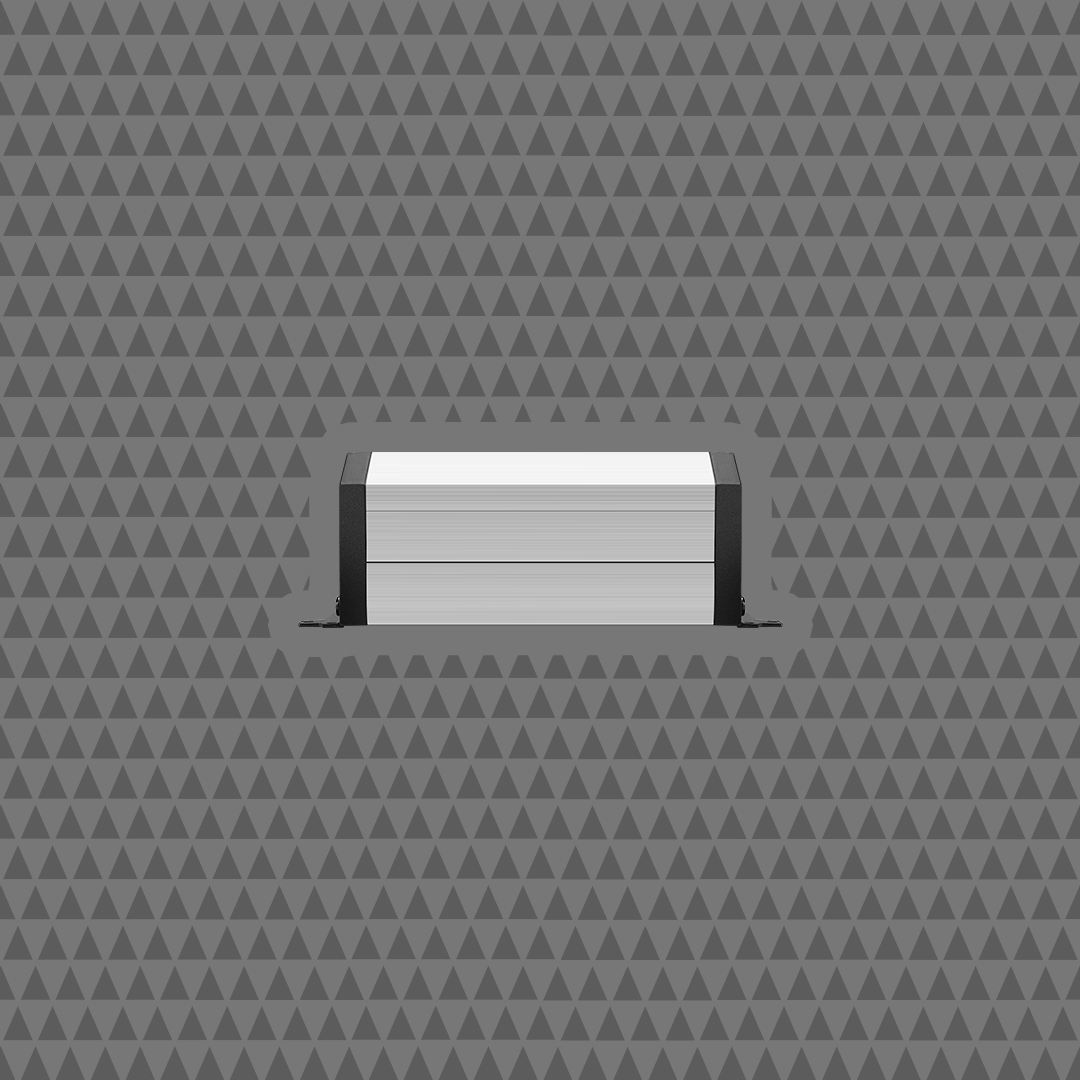

- Fully encased in extruded aluminum heatsink enclosure for efficient cooling and performance
- ICAD circuit provides superior overload system protection
- Designed to last, in the USA
- Three (3) year warranty, to show we mean it
OUTPUT POWER
RMS Power – 4 Channel (14.4 V): 200 W x 4 @ 4 Ω Stereo | 225 W x 4 @ 2 Ω Stereo
RMS Power – 2 Channel Bridged Mode (14.4 V): 450 W x 2 @ 4 Ω
AUDIO PERFORMANCE
Frequency Response: 20 Hz – 20 kHz +/- 3 dB
THD + N (10% Rated Power): 0.1% @ 2 Ω per channel
Signal-to-Noise Ratio: 91 dB (A-weighted)
Damping Factor: 200
Total Efficiency: 80%
TUNING
Crossover Modes: LPF / FULL / HPF
Crossover Frequency Range: 30 – 300 Hz
Crossover Slope: 12 dB per octave
Gain Range: 12 V – 0.2 V
ELECTRICAL & POWER MANAGEMENT
Operating Voltage: 9 V – 16 V
Current Draw (Music): 60 A
Current Draw (Maximum): 110 A
Recommended Fuse (Music): 80 A
Turn-On Configuration: REM / DC / VOX
PHYSICAL DIMENSIONS
With Mounting Brackets: 5.7 x 5.1 x 2.1 inch (146 x 130 x 52 mm)
Chassis Only: 4.7 x 5.1 x 2.1 inch (192 x 130 x 52 mm)
