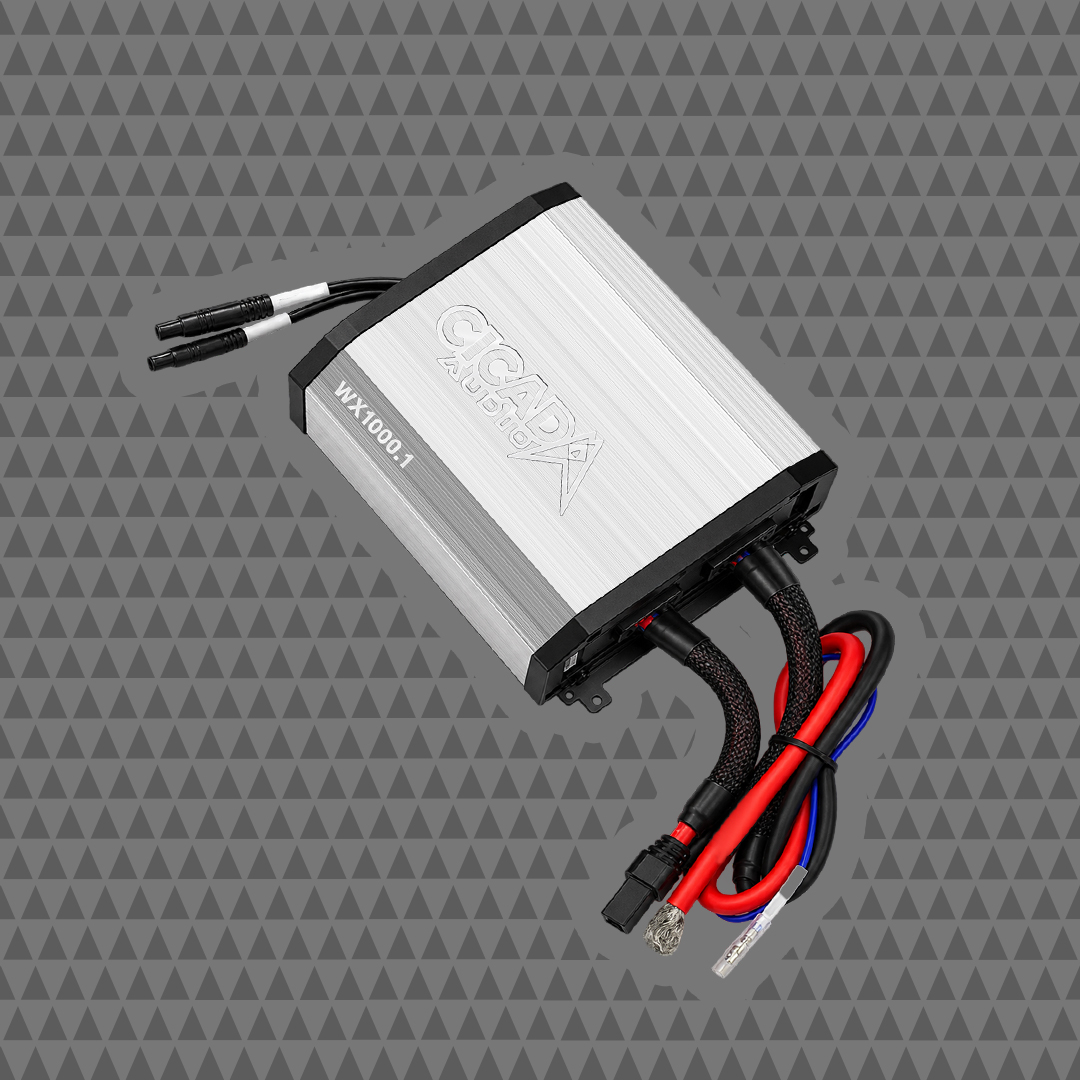

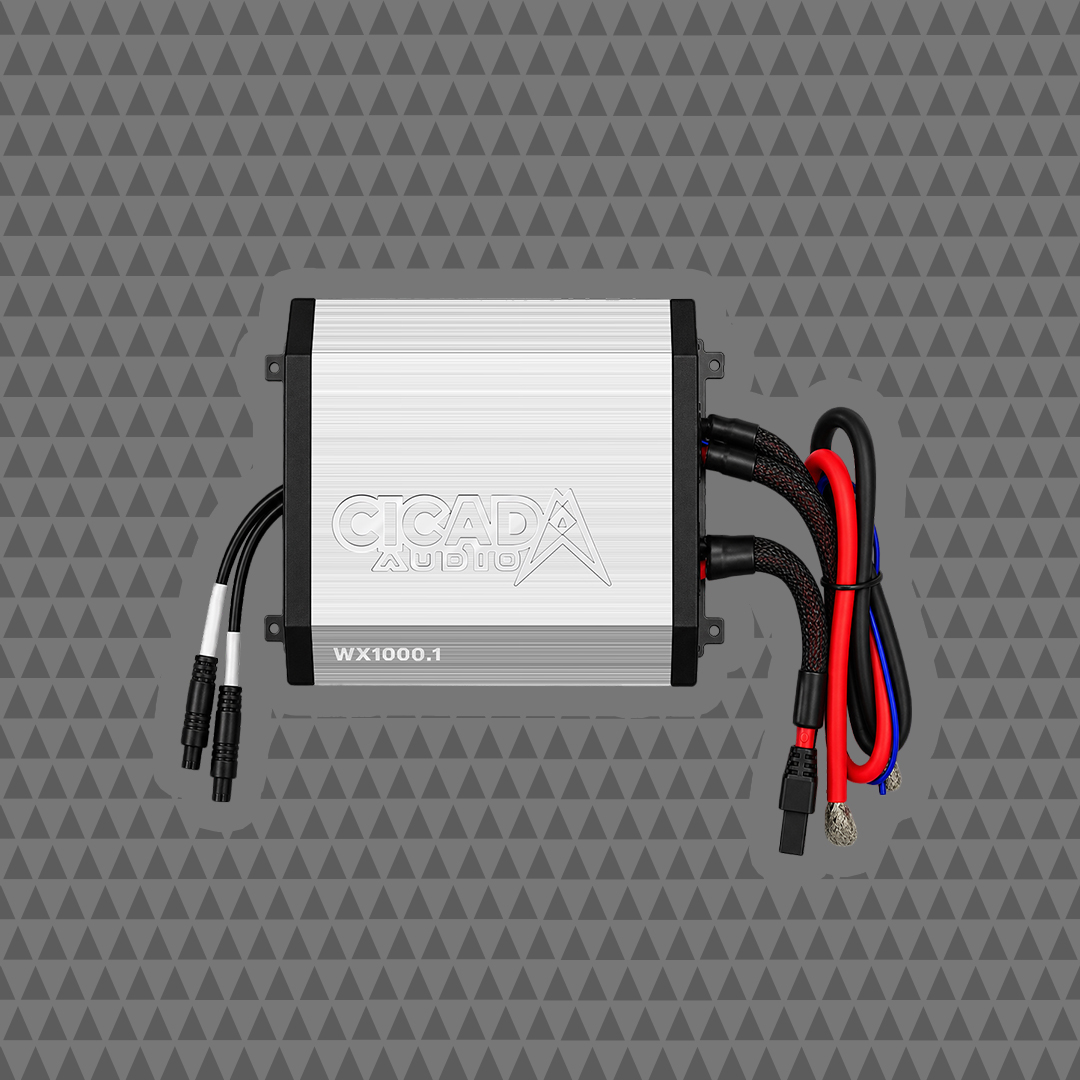

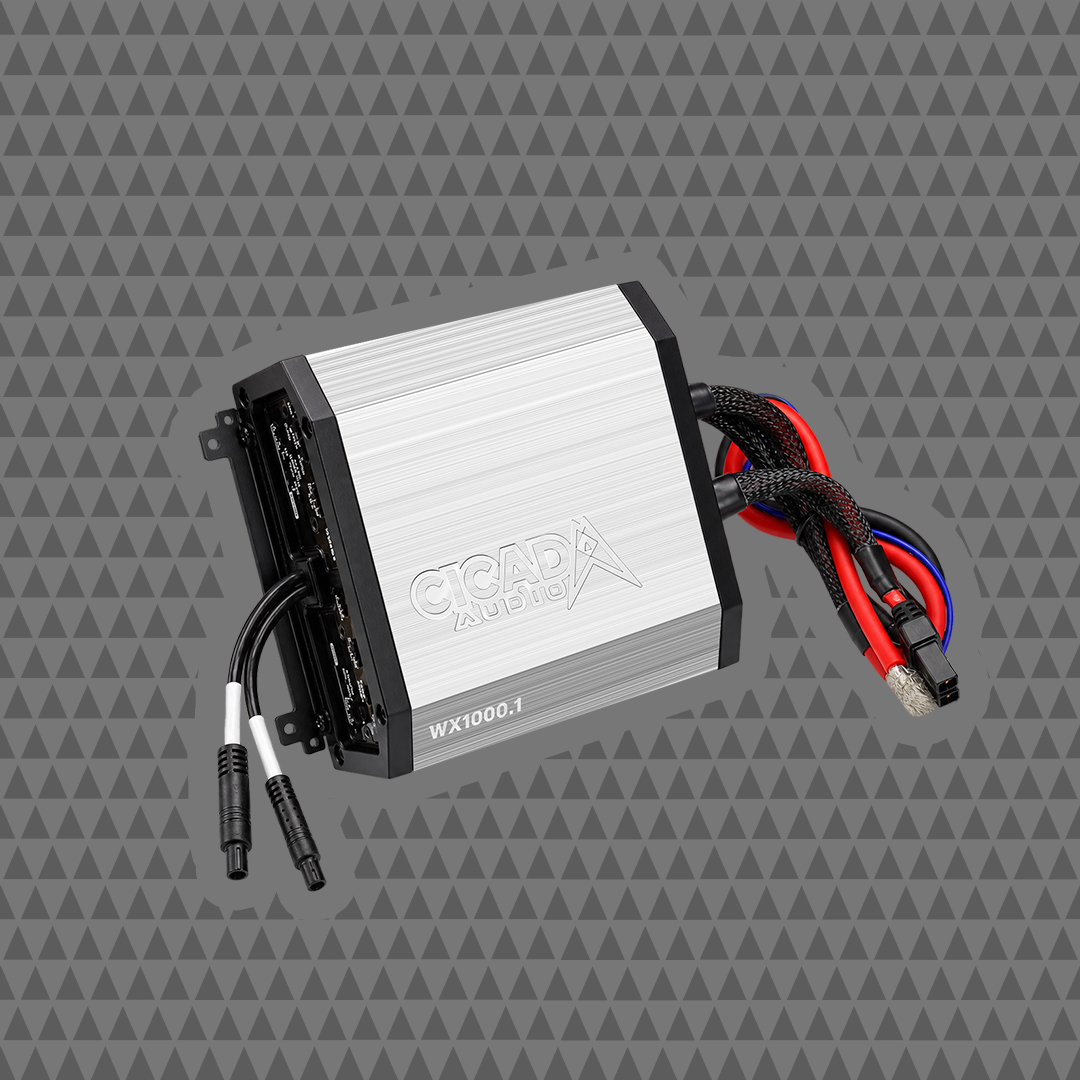

Weather-Resistant 1 Channel Class D Full-Range Monoblock Amplifier
Compact, powerful, and rugged or element ready or built for the ride
SMALL SIZE, BIG SOUND
- Compact and engineered to deliver maximum power without compromise
- 1000 W of high-fidelity power in a chassis that fits in your fairing
- Class D IR-based chipset offers latest in digital technology

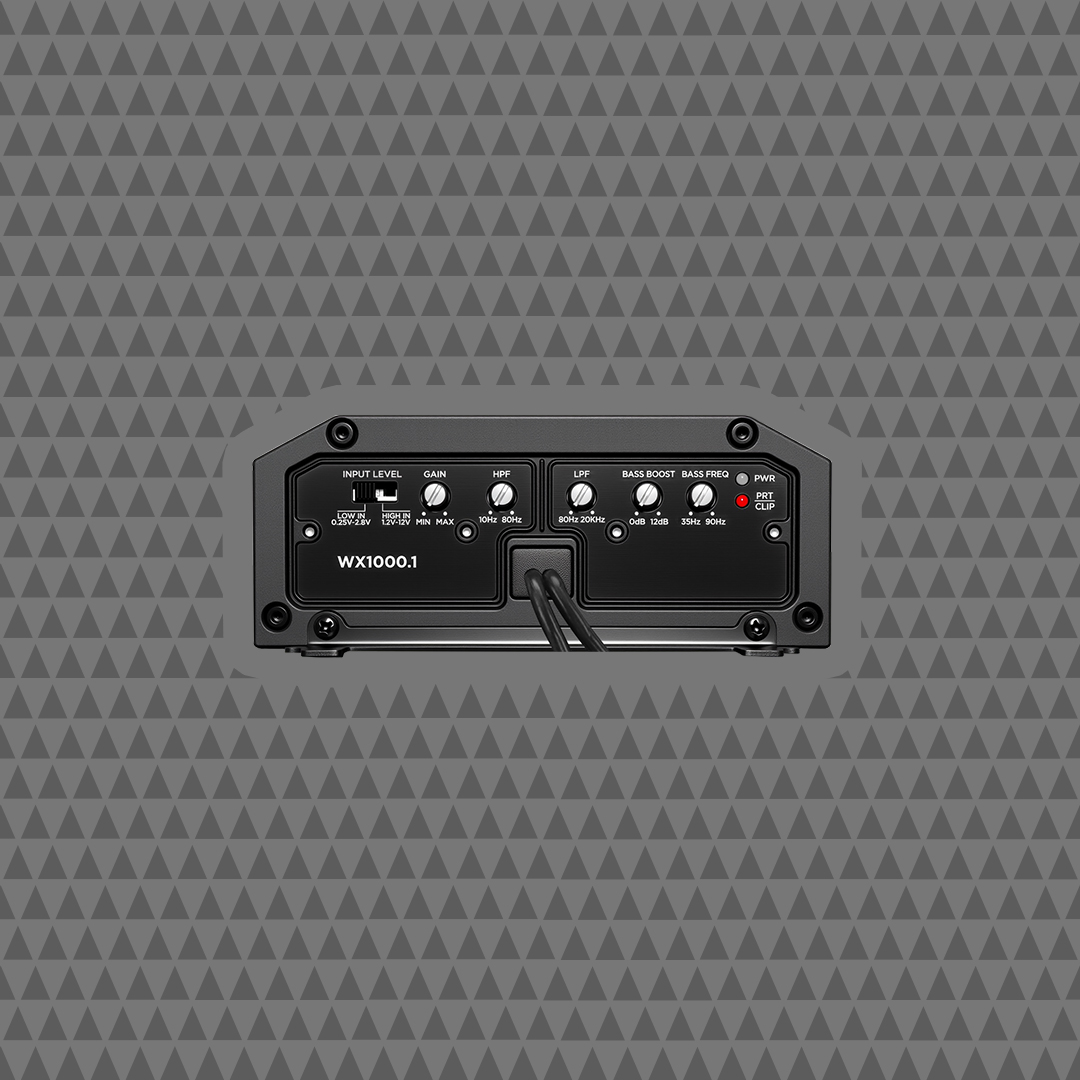

CONTROL LIKE A PRO
- Up to 12 dB of bass boost
- LPF / HPF crossovers with 12 dB per octave slopes
- Sensitivity adjustment from 12 V – 0.2 V
- Clipping and Status LED indicators

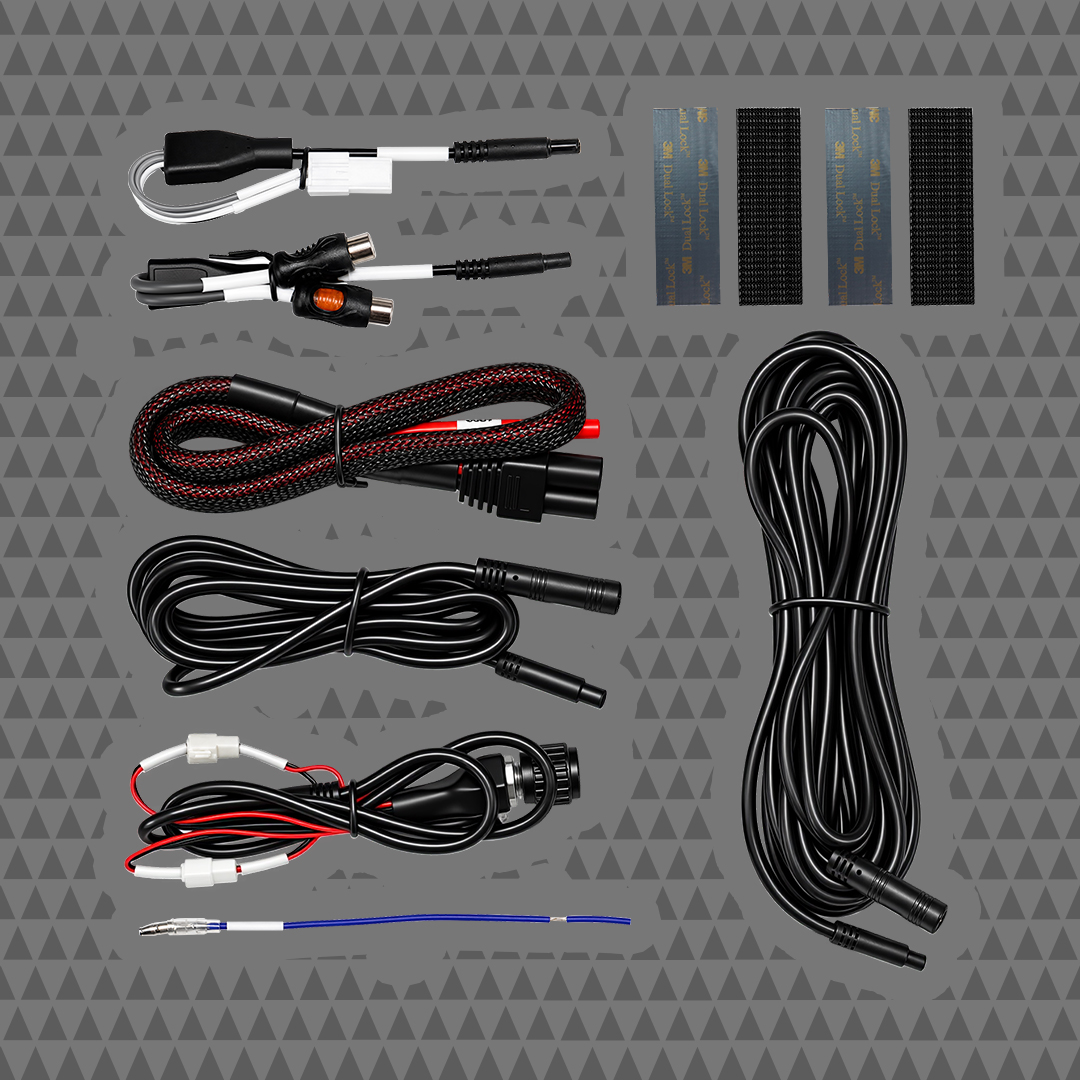

INSTALLATION IS SO DAMN EASY
- Engineered for a secure, factory fit on Cicada Audio® amplifier racks (racks sold separately)
- Included mounting brackets provide multiple installation orientations for maximum flexibility
- Micro DIN inputs for flexible hookup via RCA or H-D® custom termination
- 12-inch molded and over-braided 8 AWG power and ground leads provide a fully sealed, weather-resistant power connection
- 6-inch molded and over-braided 16 AWG speaker wire leads provide a fully sealed, weather-resistant output and are terminated with a female Molex® connector
TOUGHER THAN THE ROAD
- Rugged IPX6 weatherproof design withstands extreme water exposure
- Water-repellent materials with over-molded strain relief deliver long-lasting durability
- Protective conformal coating applied to the circuit board guards against the elements
- Fully encased in extruded aluminum heatsink enclosure for efficient cooling and performance
- ICAD circuit provides superior overload system protection
- Designed to last, in the USA
- Three (3) year warranty, to show we mean it
OUTPUT POWER
RMS Power – 1 Channel (14.4 V): 500 W x 1 @ 4 Ω Mono
RMS Power – 1 Channel (14.4 V): 1000 W x 1 @ 2 Ω Mono
AUDIO PERFORMANCE
Frequency Response: 20 Hz – 20 kHz +/- 3 dB
THD + N (10% Rated Power): 0.1% @ 2 Ω per channel
Signal-to-Noise Ratio: 91 dB (A-weighted)
Damping Factor: 200
Total Efficiency: 80%
TUNING
Crossover Modes: LPF / HPF
Crossover HPF Frequency Range: 10 Hz – 80 Hz
Crossover LPF Frequency Range: 80 Hz – 20 kHz
Crossover Slope: 12 dB per octave
Gain Range: 12 V – 0.2 V
ELECTRICAL & POWER MANAGEMENT
Operating Voltage: 9 V – 16 V
Current Draw (Music): 60 A
Current Draw (Maximum): 110 A
Recommended Fuse (Music): 80 A
Turn-On Configuration: REM / DC / VOX

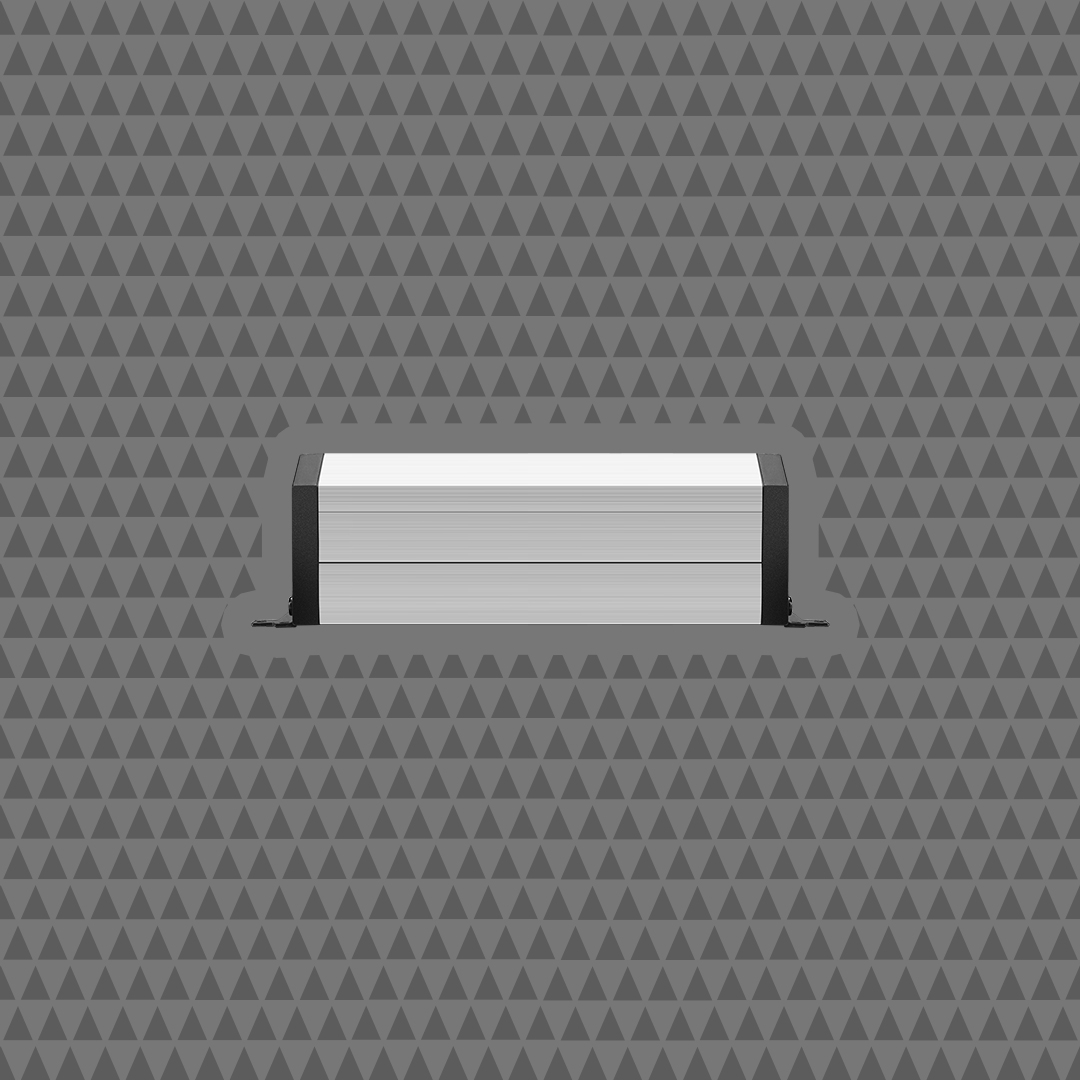

PHYSICAL DIMENSIONS
With Mounting Brackets: 6.9 x 5.1 x 2.1 inch (178 x 130 x 52 mm)
Chassis Only: 6 x 5.1 x 2.1 inch (153 x 130 x 52 mm)
