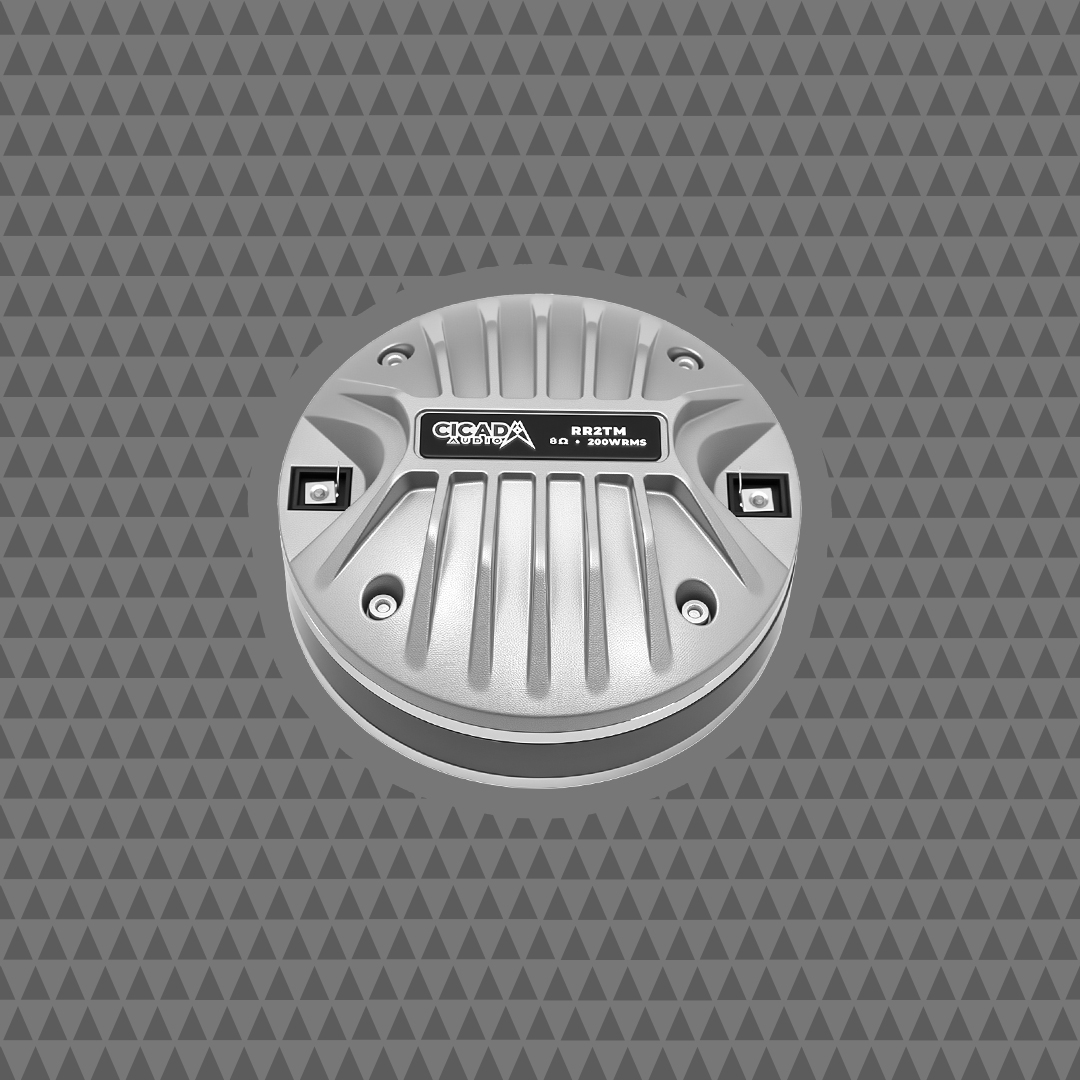

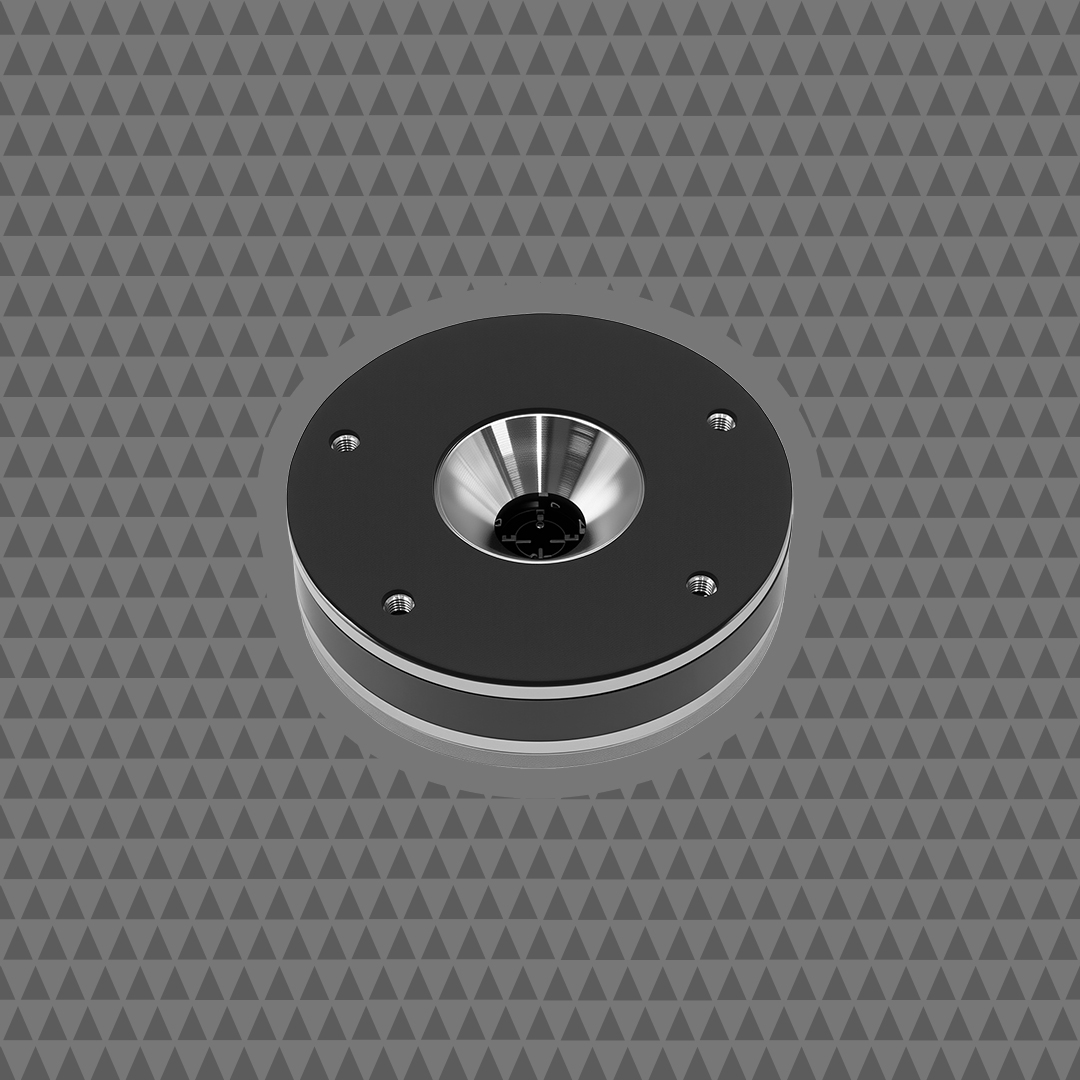

2-inch Ring Radiator Horn Tweeter Motor – PAIR

FEATURES:

• Rain or Shine™ all weather performance design
• Nanofram™ horn cover designed for maximum tweeter protection from rain
• Compatible with all Cicada Audio® ring radiator waveguides
  • 6.5-inch Flat (RR3WG-65F)
  • 6 X 9-inch Shallow (RR3WG-69S)
  • 6 X 9-inch Angled (RR3WG-69A)
  • 6 X 9-inch Flat (RR3WG-69F)
  • 8-inch Flat (RR3WG-69F)
• Ultra-high sensitivity for increased efficiency and louder sound
• Aluminum tweeter dome diaphragm delivers brighter sound and maximized efficiency
• OFC Copper wire voice coil offers great sound while generating less heat
• Y35 Ferrite magnet motor
• Compatible with Cicada Audio® CHDLID 2014+ or 24CHDLID 2024+ H-D® lid kits
• Replaceable Aluminum Diaphragms

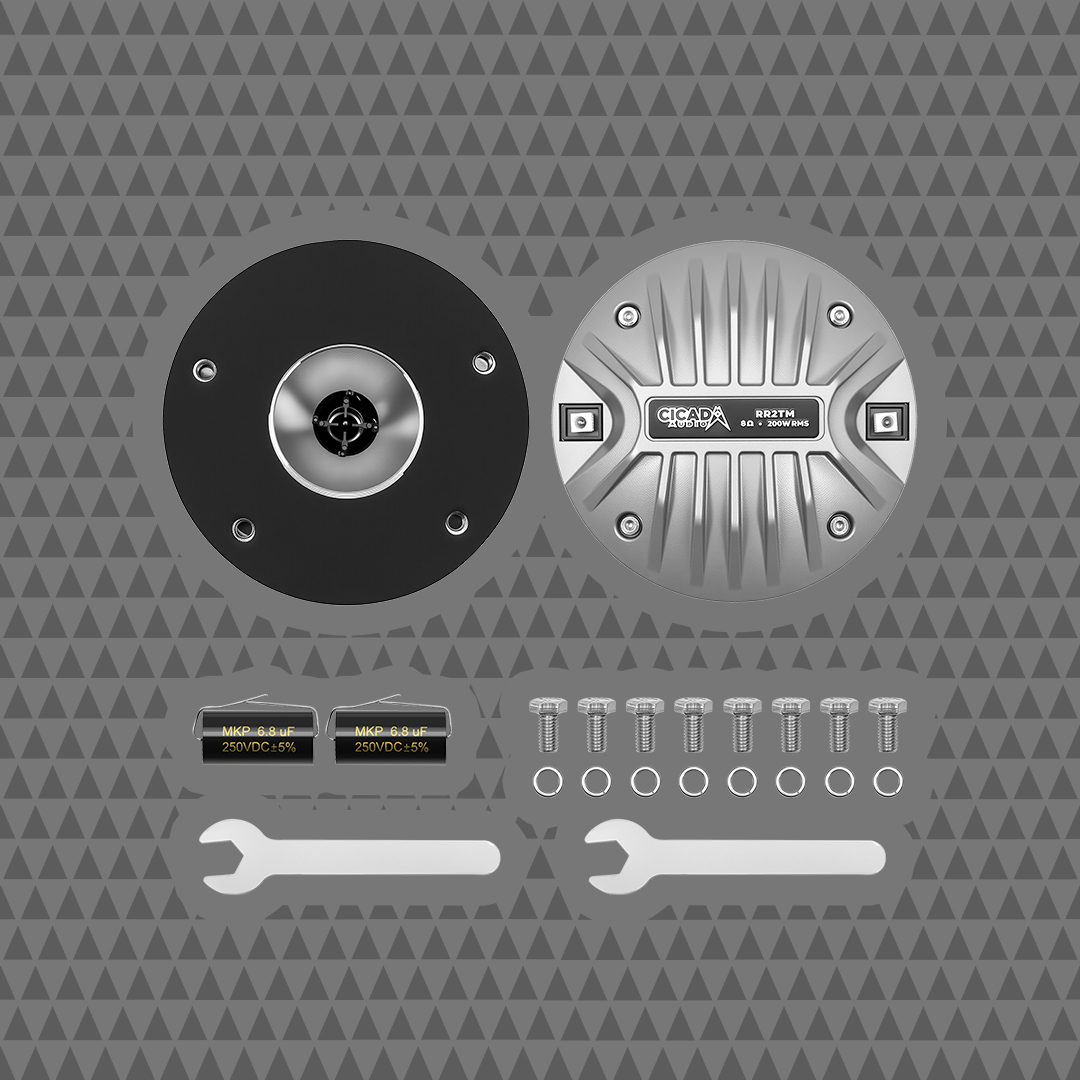

• 3k Passive Crossovers included
• Two (2) year warranty

SPECIFICATIONS:

• 8Ω / 2-inch ring radiator horn tweeter motor
• Power Handling: 200W RMS/400 MAX
• Voice Coil: 2-inch/50mm
• Tweeter Dome: Aluminum
• Crossover: 6 dB @ 2.9 kHz
• Magnet: Y35 Ferrite
• Sensitivity:  108 dB, 1W / 1M
• Frequency Response: 1.2 kHz – 20kHz -/+ 3 dB
• Mounting Depth: 2.22-inch/ 56.5mm (motor only)
