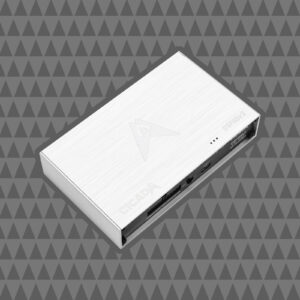

DSP88v2 – 8 CHANNEL DSP PROCESSOR – 8 IN/8 OUT

• Signal Input:  8 High-Low Level Inputs
• Signal Output:  8 RCA Outputs
• Output Impedance: 200 Ohms
• Frequency Response:  20Hz – 20kHz +/- 0.5Db
• Input Voltage:  0.02V –  12V
• Input Impedance:  20k Ohms
• Output Voltage: Up to 8V (Unity gain 4V gets UP to 4 V out, 2 V in gets UP to  2 V out, etc.)
• THD+N:  <1.0%
• Signal-to-Noise:  >100 dBA (A-weighted)
• Digital Signal Processing (DSP):
  Speed: 147 MIPS    Precision: 32-Bit    Accumulators: 72-bit
• Digital to Analog (DAC):  Precision: 24-Bit
• Dynamic Range: 108 dB
• THD+N: -98 dB
• Analog to Digital (ADC):  Precision: 24-Bit
• Dynamic Range: 105 dB
• THD+N: -98 dB
• Operating Voltage:  9 – 16 VDC
• Crossover Frequency:  Variable: 20 Hz to 10 kHz
• Crossover Slope:  Selectable Slope: 6/12/18/24/36/48 dB/Octave
• EQ Frequency Controls:  Selectable Q: 0.05 to 20.0
• Dimensions (H x W x D): 1.26″ x 4.04″ x 5.12″ (32 mm x 102.5 mm x 130 mm)

Cicada Audio’s patented Bluetooth digital signal processor gives you the ability to do DSP tuning and signal summing via app. Using the downloadable CA DSP app on your smartphone or tablet.

You can upload saved system settings from one DSP88 and load it into a different DSP88v2.   (Think of the possibilities!)
