BDA1600.1D

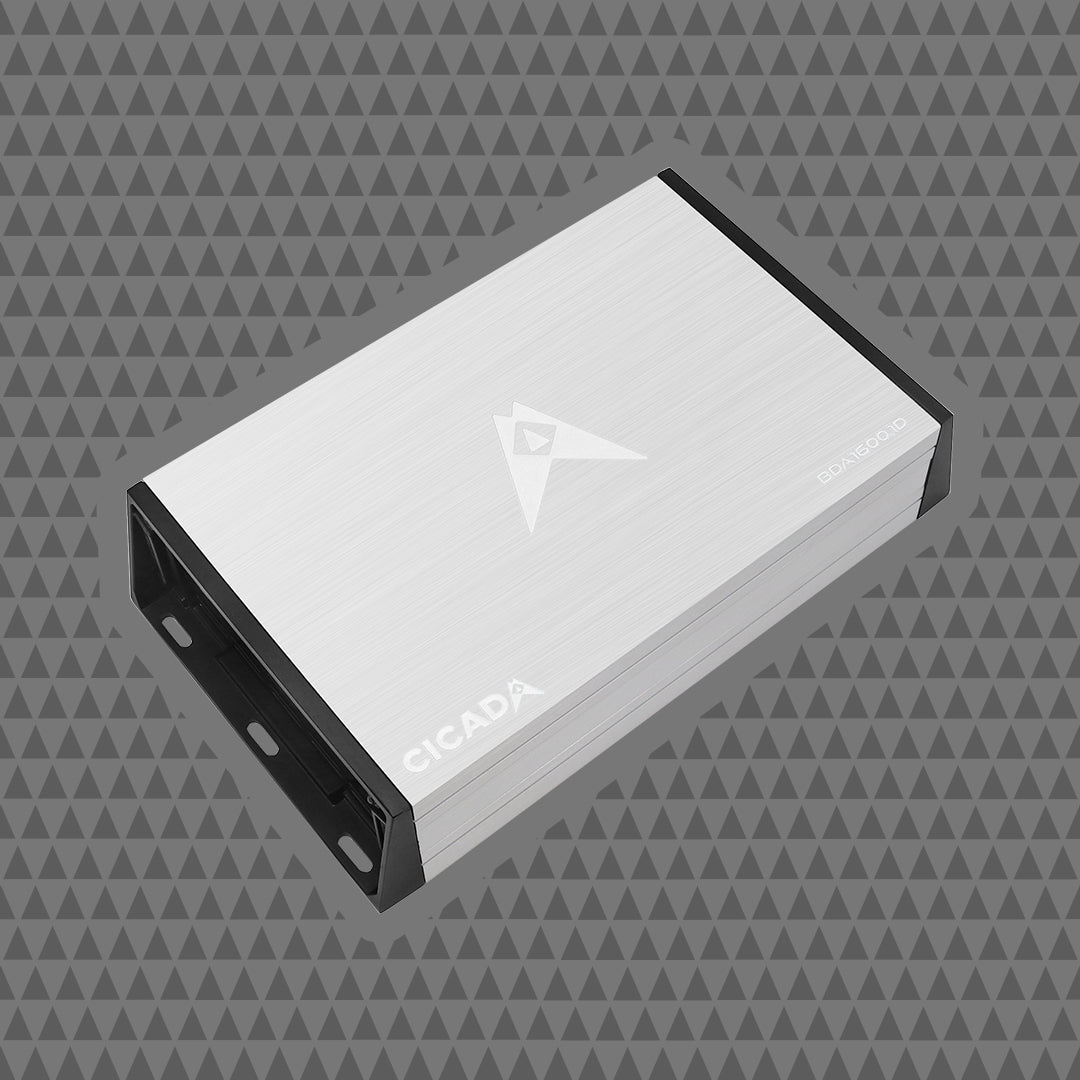

1600w Monoblock Full Range Amplifier (Gen-BDA)
Discontinued
This product has been discontinued
It is no longer available for purchase, but we still support it. If you have questions or need help, our team is here for you.
Contact UsMONOBLOCK POWER AMPLIFIER – 1600W RMS of Raw Power
Engineered for high performance and efficiency, the BDA1600.1D monoblock amplifier delivers serious bass and clean, powerful output for demanding systems.
Model: BDA1600.1D
Internal Reference: HDPG4K
4 AWG Power Wire Recommended
Perfect Pairing:
Pairs exceptionally well with:
-
CMB10.S4 10″ Pro Mid-Bass 4Ω (Coming Soon)
Power & Electrical Specs
Operating Voltage: 9V–16V | Current Draw (Music): 70A | Max: 140A | Recommended Fuse: 100A
RMS Power Output
4Ω @ 12.5V: 670W | 4Ω @ 14.4V: 950W
2Ω @ 12.5V: 1250W | 2Ω @ 14.4V: 1600W
Mono Output: 1600W RMS
Audio Performance
Frequency Response: 10Hz–20kHz (±3dB) | THD: <0.5%
Efficiency: 80% | Damping Factor: 200 | SNR: 86dB

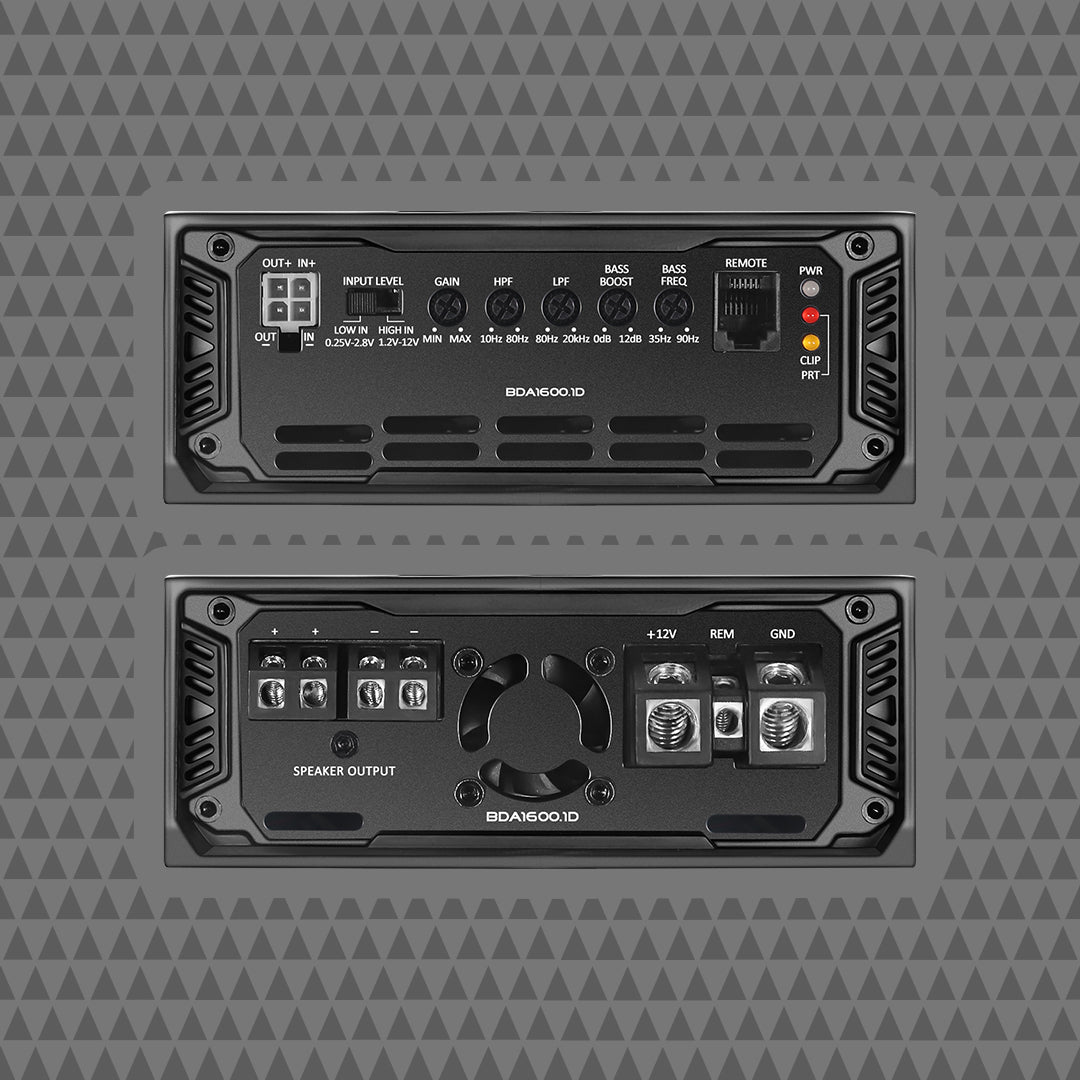

Crossover & Control
HPF: 10Hz–80Hz | LPF: 80Hz–20kHz | Slope: 12dB/octave
Gain Range: 0.2V–12V
Additional Features
Turn-On: REM / DC | THD+N (10% Rated Power): 0.1%
Dimensions
Inches: 9.1" x 5.37" x 2.1"
Millimeters: 232mm x 136.4mm x 54mm
